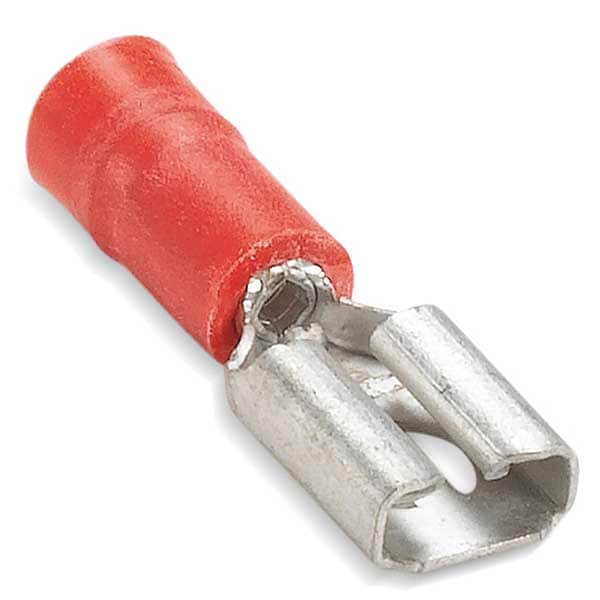

Female Disconnect, Red, 22-18AWG, PK100

SKU
Brand Sta-Kon
Categories
Description Female Disconnect, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716, Barrel Inside Diameter 0.06 in
graingerSKU: 4RHD4, mscSKU: , zoro_no: G0526145, mongo_id: 65bbe6613aaddbd5a9027346

Web Price

$61.99 / each

Qty

Product Details

A (inches) 0.96

Application Tools WT145C, WT2000, WT112M, ERG4001, ERG4003

AWG-range 22-18

B (inches) 0.29

Barrel Inside Dia. 0.06 in

Barrel Inside Diameter 0.06 in

Barrel Size Long

Barrel Style Funnel Entry

Color Red

Connection Material Brass

Connection Type Crimp

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) United States

Disconnect Type Female - 250 Series

Features Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA257

Finish Electro Tin-Plated

Flammability Rating UL 94 V-0

For Wire Size 18 AWG, 20 AWG, 22 AWG

Insulation Partial

Insulation Color Red

Insulation Coverage Partial Coverage

Insulation Material Vinyl

Insulation Type Vinyl

Material Brass

Material insulation Polyvinyl chloride (PVC)

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Insulation (inches) 0.15

Maximum Operating Temperature 221 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 18 AWG

Minimum Wire Size 22 AWG

Overall Length 0.96 in

Package Quantity 100

Recommended Tool ERG4001

RoHS Compliant No

Seam Brazed

Seam Style Brazed

Special Features Brazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability

Standards UL E66716

Stock Thickness 0.03

Tab Size 0.032 in x 0.250 in

Tab Thickness 0.032 in

Tab Width 0.25 in

Temperature Rating 105ÃÂ°C

Terminal Series RA

Terminal Type Socket

Terminal Types Female Socket

Termination Style Crimp

Type Vinyl Insulated Female Disconnect
