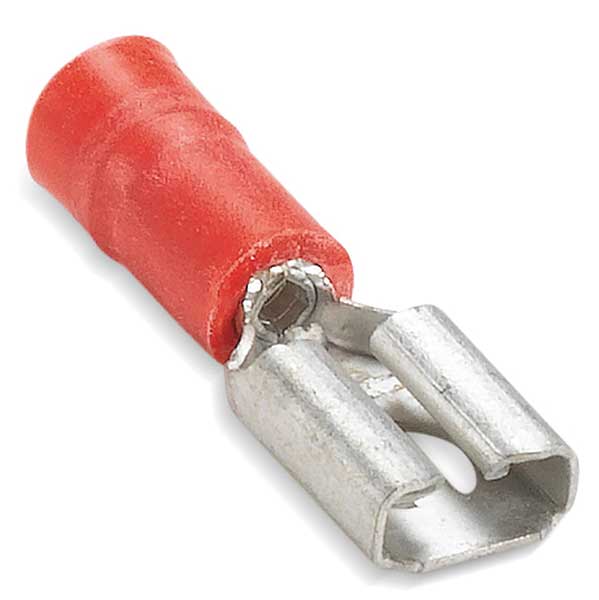

Female Disconnect, Red, 22-18AWG, PK100

SKU
Brand Sta-Kon
Categories
Description Female Disconnect, Insulation Color Red, Terminal Type Disconnect, Standards CSA, RoHS Compliant, UL Listed E66716, Insulation Type Vinyl, Overall Length 0.85 in, Package Quantity 100
graingerSKU: 4RHD5, mscSKU: , zoro_no: G0680881, mongo_id: 65bbe9bf22d7a989a99754e0

Web Price

$57.06 / each

Qty

Product Details

A (inches) 0.85

Application Tools WT145C, WT2000, WT112M, ERG4001, ERG4003

AWG-range 22-18

B (inches) 0.23

Barrel Inside Dia. 0.06 in

Color Red

Connection Material Brass

Connection Type Crimp

Country of Origin (subject to change) United States

Disconnect Type Female - 187 Series

Features Quick, reliable method of connection to terminal blocks and boards without the use of tools.; Unique construction of the female disconnect offers long-term dependability.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RAD1827

Finish Electro Tin-Plated

Flammability Rating UL 94 V-0

Insulation Partial

Insulation Color Red

Insulation Type Vinyl

Material Brass

Material insulation Polyvinyl chloride (PVC)

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Insulation (inches) 0.15

Overall Length 0.85 in

Package Quantity 100

Recommended Tool ERG4001

Seam Brazed

Special Features Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.

Standard UL E66716

Standards CSA, RoHS Compliant, UL Listed E66716

Stock Thickness 0.03

Tab Size 0.032 in x 0.250 in

Temperature Rating 105ÃÂ°C

Terminal Series RAD

Terminal Type Disconnect

Type Vinyl Insulated Female Disconnect

Voltage Rating 600V

Wire Range 22 to 18 AWG
