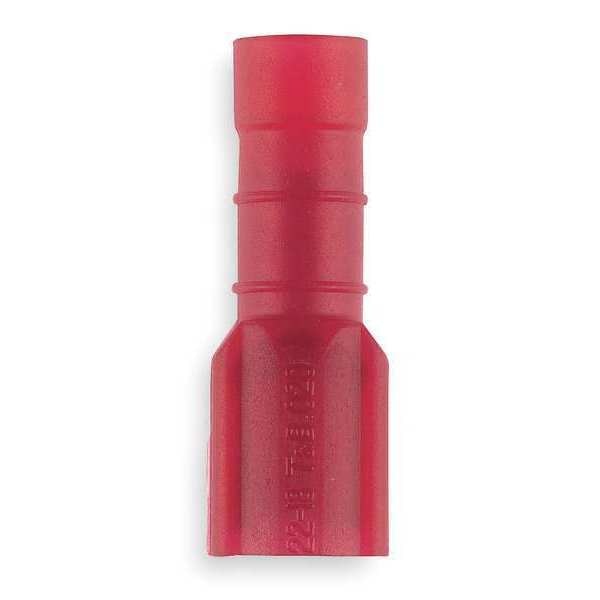

Female Disconnect, Red, 22 to 18 AWG, PK100

SKU
Brand Sta-Kon
Categories
Description Female Disconnect, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Overlapped, Standards UL E66716, Barrel Inside Diameter 0.06 in
graingerSKU: 3KF21, mscSKU: , zoro_no: G2573505, mongo_id: 65bbe97422d7a989a9958845

Web Price

$158.74 / each

Qty

Product Details

A (inches) 0.89

Application Tools WT145C, WT2000, WT112M, ERG4001, ERG4003

AWG-range 22-18

B (inches) 0.3

Barrel Inside Dia. 0.06 in

Barrel Inside Diameter 0.06 in

Barrel Size Long

Barrel Style Funnel Entry

Color Red

Connection Material Tin-Plated Copper

Connection Type Crimp

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) United States

Disconnect Type Female - 187 Series

Features Quick, reliable method of connection to terminal blocks and boards without the use of tools.; Unique construction of the female disconnect offers long-term dependability.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RAD18377

Finish Electro Tin-Plated

Flammability Rating UL 94 V-2

For Wire Size 18 AWG, 20 AWG, 22 AWG

Insulation Full

Insulation Color Red

Insulation Coverage Full Coverage

Insulation Material Nylon

Insulation Type Nylon

Material Brass

Material insulation PA

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Insulation (inches) 0.15

Maximum Operating Temperature 221 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 18 AWG

Minimum Wire Size 22 AWG

Overall Length 0.89 in

Package Quantity 100

Recommended Tool ERG4001

RoHS Compliant No

Seam Overlapped

Seam Style Overlapped

Special Features Quick, Reliable Method of Connection to Terminal Blocks and Boards without the Use of Tools, Unique Construction of the Female Disconnect Offers Long-Term Dependability

Standards UL E66716

Stock Thickness 0.03

Tab Size 0.032 in x 0.187 in

Tab Thickness 0.032 in

Tab Width 0.187 in

Temperature Rating 105ÃÂ°C

Terminal Series RAD

Terminal Type Socket

Terminal Types Female Socket

Termination Style Crimp

Type Nylon Insulated Female Disconnect

UL 94 Flammability Rating Not Rated
