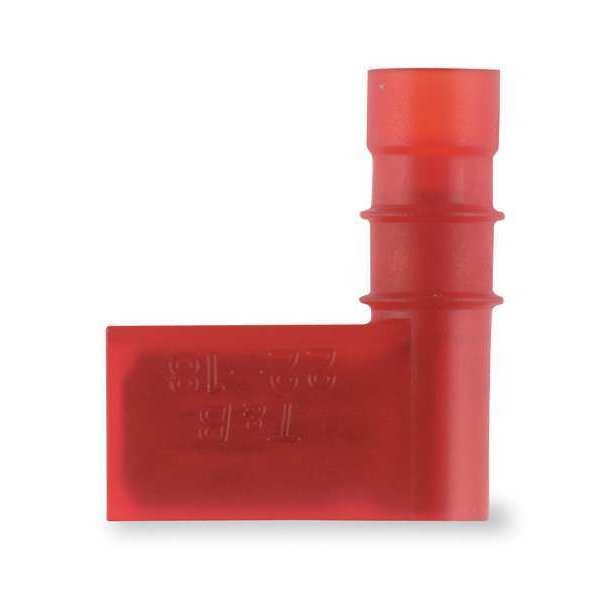

Female Flag Disconnect, Red, PK50

SKU
Brand Sta-Kon
Categories
Description Female Flag Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style 90 Degree, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
graingerSKU: 3KG07, mscSKU: , zoro_no: G1970534, mongo_id: 65bbe70b3aaddbd5a906ecc4

Web Price

$74.74 / each

Qty

Product Details

AWG-range 22-18

Barrel Inside Dia. 0.06 in

Barrel Inside Diameter 0.06 in

Barrel Size Long

Barrel Style Funnel Entry

Color Red

Connection Material Tin-Plated Copper

Connection Orientation 90 Degrees Angled

Connection Type Crimp

Contact Finish Tin

Contact Material Brass

Country of Origin (subject to change) United States

Disconnect Style 90 Degree

Features Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA2577F

Finish Tin Plated

For Wire Size 18 AWG, 20 AWG, 22 AWG

Insulation Partial

Insulation Color Red

Insulation Coverage Partial Coverage

Insulation Material Nylon

Insulation Type Nylon

Material Brass

Material insulation PA

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 221 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 18 AWG

Minimum Wire Size 22 AWG

Overall Length 0.8 in

Package Quantity 50

RoHS Compliant No

Seam Overlapped

Seam Style Brazed

Special Features Brazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability

Standard UL E66716

Standards UL E66716

Tab Size 0.032 in x 0.250 in

Tab Thickness 0.032 in

Tab Width 0.25 in

Terminal Type Socket

Terminal Types Female Socket

Termination Style Crimp

Type Nylon Insulated Open Top 90 Degree Flag Female Disconnect

UL 94 Flammability Rating Not Rated

Wire Range 22 to 18 AWG

Wire Size Range 22 AWG - 18 AWG
