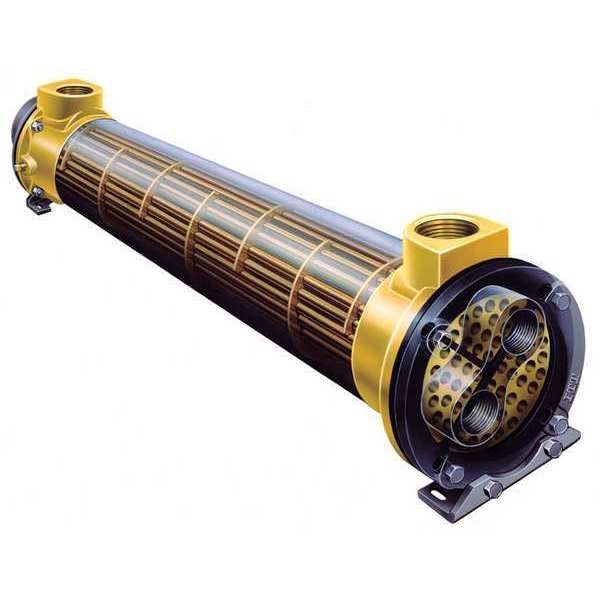

Heat Exchanger, 1,600,000 BTU, Brass

Heat Exchanger, 1,600,000 BTU, Brass

  • Standard Xchange
  • Raw Materials
  • Heat Exchanger, Heat Dissipation Capacity for Water 1,600,000 BtuH, Heat Dissipation Capacity for Oil 239,000 BtuH, Total Surface Area 34 sq ft, Shell Outside Diameter 6 1/8 in, Tube Length 41 1/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water

    graingerSKU: null, mscSKU: null, zoro_no: G0912012, mongo_id: 65bbe6283aaddbd5a900faba

Web Price
$4,659.99 / each
Qty

Product Details

Oil to Water Applications
Tube 57, Shell 73
Shell 2 in NPT, Tube 1 1/2 in NPT
Brass
United States
239,000 BtuH
1,600,000 BtuH
Straight Tube
8.375 in
41.125 in
239,000 BtuH
1,600,000 BtuH
4
8 3/8 in
7 3/4 in
1
Shell 300 psig, Tube 150 psig
73 gpm
Brass
300 Degrees F
300 psig
6 1/8 in
2 in
NPT
34 sq ft
300
34 sq ft
57 gpm
41 1/8 in
Copper
300 Degrees F
150 psig
1 1/2 in
Shell and Tube
95 lb
7.75 in
