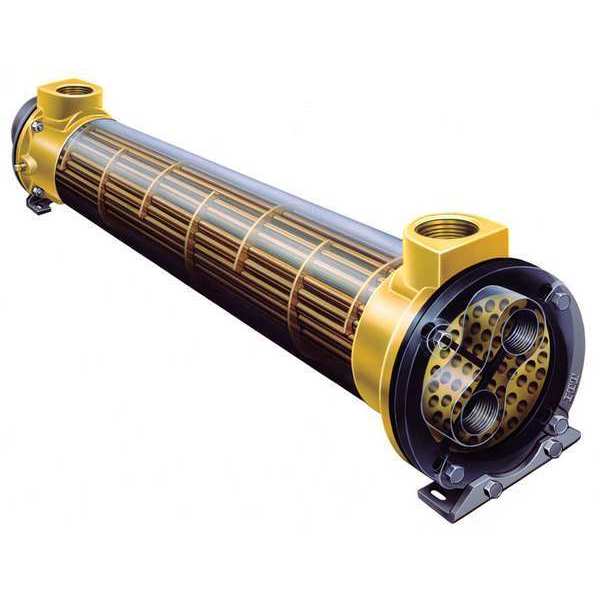

Heat Exchanger, 3,100,000 BTU, Brass

Heat Exchanger, 3,100,000 BTU, Brass

  • Standard Xchange
  • Raw Materials
  • Heat Exchanger, Heat Dissipation Capacity for Water 3,100,000 BtuH, Heat Dissipation Capacity for Oil 516,000 BtuH, Total Surface Area 83 sq ft, Shell Outside Diameter 8 1/8 in, Tube Length 54 5/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water

    graingerSKU: , mscSKU: , zoro_no: G0980192, mongo_id: 65bbe9cb22d7a989a997a7b0

Web Price
$12,626.24 / each
Qty

Product Details

Oil to Water Applications
Tube 105, Shell 140
Shell 3 in NPT, Tube 2 in NPT
Brass
United States
516,000 BtuH
3,100,000 BtuH
Straight Tube
11 in
54.625 in
516,000 BtuH
3,100,000 BtuH
4
11 in
10 1/2 in
1
Shell 300 psig, Tube 150 psig
140 gpm
Brass
300 Degrees F
300 psig
8 1/8 in
3 in
NPT
82 sq ft
300
83 sq ft
105 gpm
54 5/8 in
Copper
300 Degrees F
150 psig
2 in
Shell and Tube
220 lb
10.5 in
