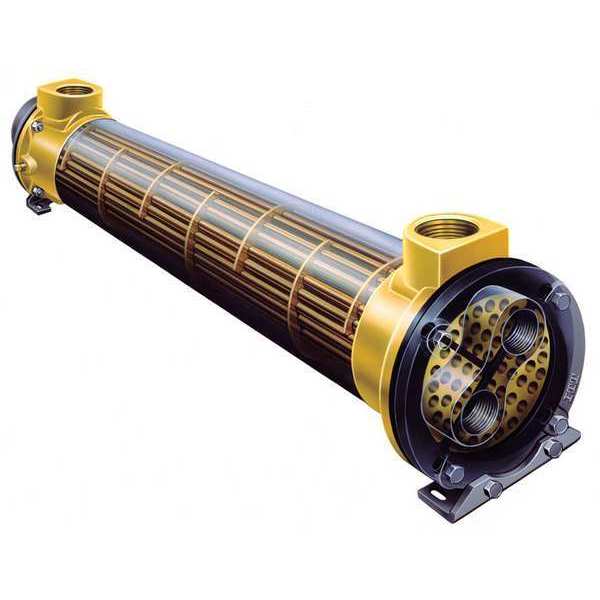

Heat Exchanger, 3,800,000 BTU, Brass

Heat Exchanger, 3,800,000 BTU, Brass

  • Standard Xchange
  • Raw Materials
  • Heat Exchanger, Heat Dissipation Capacity for Water 3,800,000 BtuH, Heat Dissipation Capacity for Oil 649,000 BtuH, Total Surface Area 124 sq ft, Shell Outside Diameter 8 1/8 in, Tube Length 78 5/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 225 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water

    graingerSKU: , mscSKU: , zoro_no: G1740277, mongo_id: 65bbe9f322d7a989a9988d21

Web Price
$11,766.24 / each
Qty

Product Details

Oil to Water Applications
Tube 105, Shell 140
Shell 3 in NPT, Tube 2 in NPT
Brass
United States
649,000 BtuH
3,800,000 BtuH
Straight Tube
11 in
78.625 in
649,000 BtuH
3,800,000 BtuH
4
11 in
10 1/2 in
1
Shell 225 psig, Tube 150 psig
140 gpm
Brass
300 Degrees F
225 psig
8 1/8 in
3 in
NPT
124 sq ft
300
124 sq ft
105 gpm
78 5/8 in
Copper
300 Degrees F
150 psig
2 in
Shell and Tube
290 lb
10.5 in
