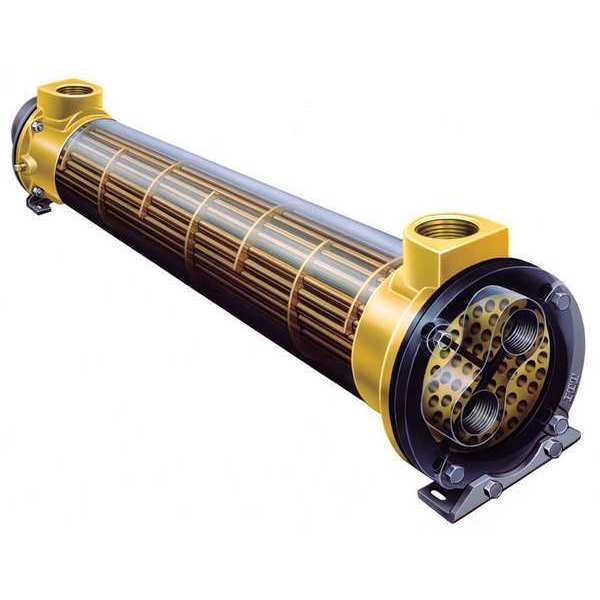

Heat Exchanger, Shell And Tube, 330K BTU

Heat Exchanger, Shell And Tube, 330K BTU

  • Standard Xchange
  • Heat Exchanger, Heat Dissipation Capacity for Water 330,000 BtuH, Heat Dissipation Capacity for Oil 56,000 BtuH, Total Surface Area 7.4 sq ft, Shell Outside Diameter 3 1/8 in, Tube Length 27 1/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water

    graingerSKU: , mscSKU: , zoro_no: G3357821, mongo_id: 65bbe59e3aaddbd5a9fd626a

Web Price
$1,623.74 / each
Qty

Product Details

Water to Water Applications
Tube 12, Shell 24
Shell 1 in NPT, Tube 3/4 in NPT
Brass
United States
56,000 BtuH
330,000 BtuH
Straight Tube
4.8 in
27.125 in
56,000 BtuH
330,000 BtuH
4
4 13/16 in
4 1/2 in
1
Shell 300 psig, Tube 150 psig
24 gpm
Brass
300 Degrees F
300 psig
3 1/8 in
1 in
NPT
7.4 sq ft
300
7.4 sq ft
12 gpm
27 1/8 in
Copper
300 Degrees F
150 psig
3/4 in
Shell and Tube
17 lb
4.5 in
