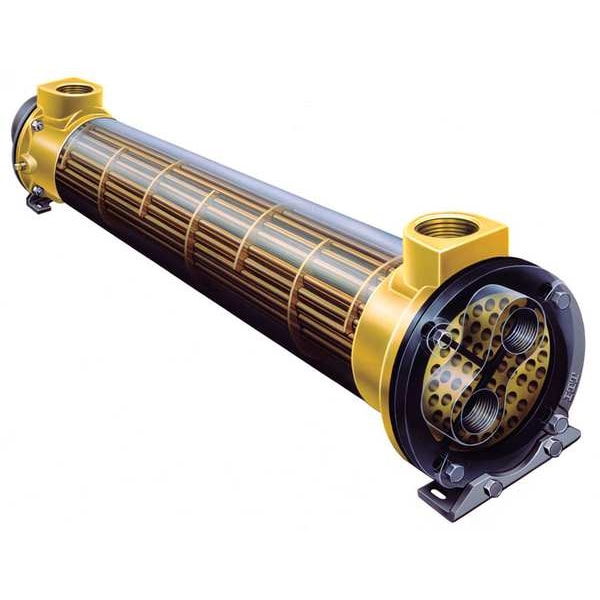

Heat Exchanger, Shell And Tube, 525K BTU

Heat Exchanger, Shell And Tube, 525K BTU

  • Standard Xchange
  • Heat Exchanger, Heat Dissipation Capacity for Water 525,000 BtuH, Heat Dissipation Capacity for Oil 42,700 BtuH, Total Surface Area 9.1 sq ft, Shell Outside Diameter 5 1/8 in, Tube Length 18 3/4 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water

    graingerSKU: , mscSKU: , zoro_no: G3359693, mongo_id: 65bbe66c3aaddbd5a902c4ff

Web Price
$2,807.49 / each
Qty

Product Details

Water to Water Applications
Tube 30, Shell 60
Shell 1 1/2 in NPT, Tube 1 in NPT
Brass
United States
42,700 BtuH
525,000 BtuH
Straight Tube
7 in
18.812 in
42,700 BtuH
525,000 BtuH
4
7 in
6 3/4 in
1
Shell 300 psig, Tube 150 psig
60 gpm
Brass
300 Degrees F
300 psig
5 1/8 in
1 1/2 in
NPT
9.1 sq ft
300
9.1 sq ft
30 gpm
18 3/4 in
Copper
300 Degrees F
150 psig
1 in
Shell and Tube
45 lb
6.75 in
