Home / S Series S3004 Variable Speed 60 GPD 25Psi

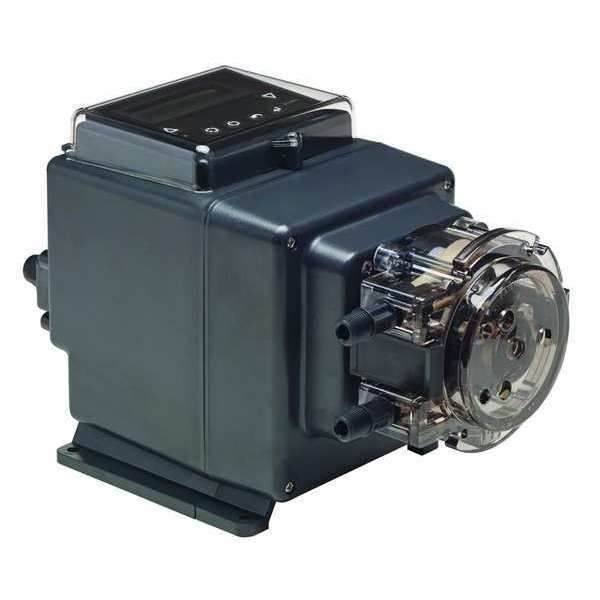

S Series S3004 Variable Speed 60 GPD 25Psi

SKU
Brand Stenner
Categories
Description Chemical Metering Pump
graingerSKU: 52XH67, mscSKU: , zoro_no: G6411828, mongo_id: 65bbe76f9a749db8227397a5

Web Price

$1,663.74 / each

Qty

Product Details

Ambient Temperature (Maximum) 104 Degrees F

Body Material Polycarbonate

Chemical Compatibility Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water

Chemical Metering Pump Type Peristaltic

Control Programs 4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control

Cord Length 6 ft

Country of Origin (subject to change) United States

Degassing Valve Included No

Discharge Connection Size 1/4 in

Discharge Connection Type Tube

Duty Cycle Continuous

Electrical Connection Type Plug-In

Features 7 days/24 hr Timer, Leak Detect, Performance Indicators Tube Change, Various Operation Modes

Fitting Material Polypropylene, PVC

Flow Rate 0.042 gpm/0.158Lpm

Flow Rate (Maximum) 60 gpd

Flow Rate (Minimum) 0.6 gpd

Flow Rate Output Control Variable

Frequency 60 Hz

Head and Fitting Material - Pumps Polycarbonate/PVC

Head Material Polyethylene, Polypropylene

Height 7 13/64 in

Horsepower (Maximum) 1/16 hp

Housing Material Polycarbonate

HP - Pumps 1/16 hp

Hz_ 60

Includes 20 ft Roll of Suction/Discharge Tubing, Pump Tube, Injection Fitting, Mounting Bracket, Weighted Suction Line Strainer, (2) Additional Latches, (3) Connecting Nuts, (3) 1/4 in Ferrules

Intake Connection Size 1/4 in

Intake Connection Type Tube

Item - Chemical Metering Pumps Chemical Metering Pump

Length 11 in

Manufacturers Warranty Length 2 yr

Max. Discharge Pressure 25 psi

Max. Flow (gpd) - Pumps 60.00 gpd

Max. Flow Rate 60 gpd

Max. Pressure 25 psi

Max. Pressure - Pumps 25 psi

Max. Viscosity 1500 CPS

Max. Viscosity - Pumps 1,500 cps

Media Temp. Range 32 Degrees F to 104 Degrees F

Media Temperature (Maximum) 104 Degrees F

Media Temperature (Minimum) 32 Degrees F

Metering Reproducibility +/-2.0%

Min. Flow Rate 0.6 gpd

Motor Enclosure Totally Enclosed

Motor HP 1/16

Motor Mounting Type Not Applicable

Motor RPM 2,800 RPM

Motor Speed (Maximum) 45 RPM

Motor Type Brushless DC

Nameplate Voltage 120V AC

Number of Feeds Single Head

Overall Height 7 in

Overall Length 6.4 in

Overall Width 10.9 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Pressure (Maximum) 25 psi

Priming Self-Priming

Pump RPM 45 RPM

Pump Type Peristaltic

Reproducibility +/-2.0%

Reproducibility - Pumps +/-2.0%

Roller Material Polyethylene

Seal Material Buna-N

Seals and O-Rings - Pumps Buna-N

Self-Priming Yes

Standards IAPMO Listed Conforms to Standard NSF/ANSI 61 and 372, INTERTEK/ETL Sanitation Listed Conforms to Standard NSF/ANSI 50, INTERTEK/ETL Tested for CE, NEMA 4X

Suction Lift 25 ft

Tubing Material Santoprene

Tubing Material - Peristaltic Pumps Versilon

Turn Down Ratio 100:1

Turn Down Ratio - Pumps 100:1

Viscosity (Maximum) 1,500 cps

Voltage 120

Voltage - Pumps 120V AC

Width 5 29/32 in
