Home / Sure-Flex Sleeve Coupling Insert, 9N, Neoprene

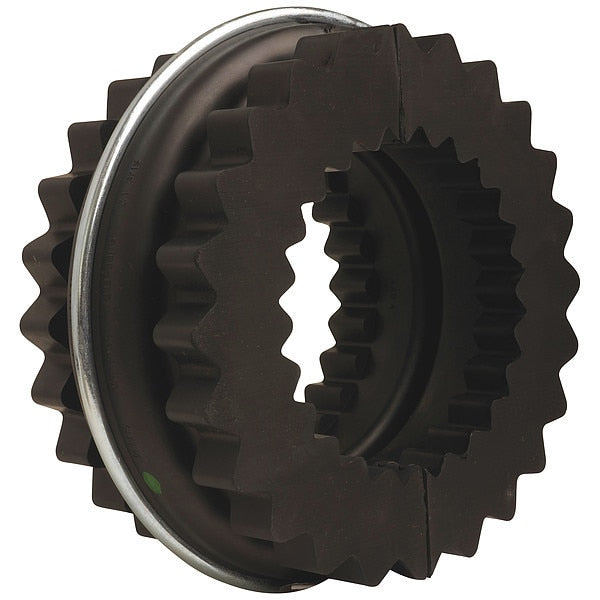

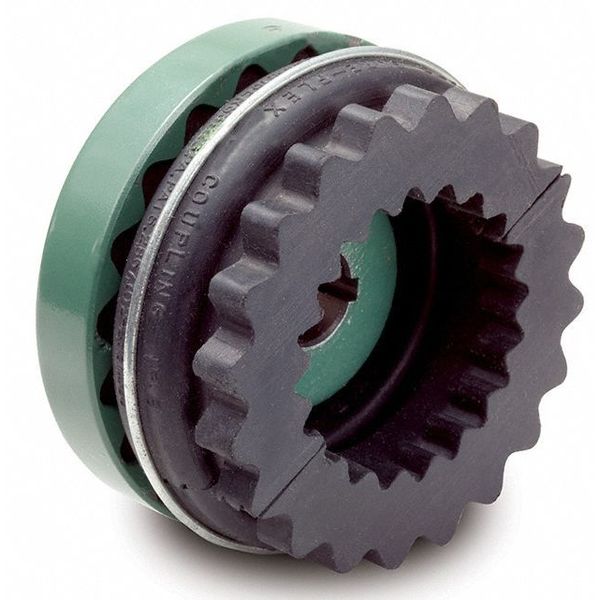

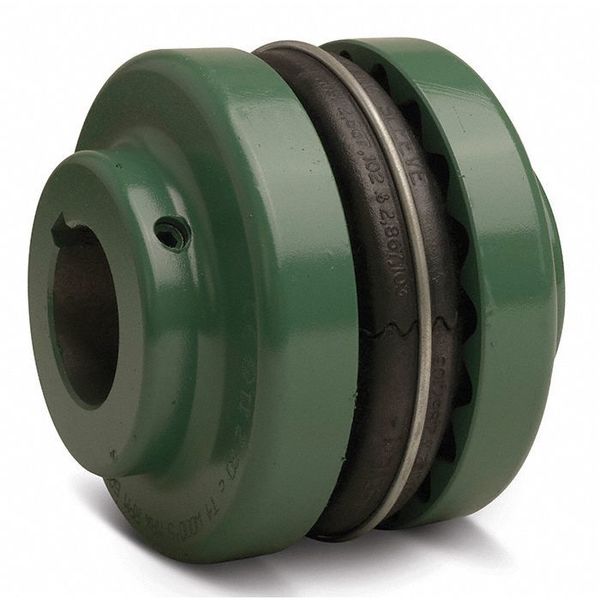

Sure-Flex Sleeve Coupling Insert, 9N, Neoprene
Sure-Flex Sleeve Coupling Insert, 9N, Neoprene
Sure-Flex Sleeve Coupling Insert, 9N, Neoprene

Sure-Flex Sleeve Coupling Insert, 9N, Neoprene

  • Tb Woods
  • Sleeve Coupling Insert, Coupling Size 9, Maximum Speed 3,750 RPM, Maximum Torque 2,340 in-lb, Outside Diameter 6 in, Insert Construction 2-Piece with Retaining Ring, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 3.7 hp, Insert Material Neoprene, Insert Width 3 in, Parallel Misalignment 0.025 in, System of Measurement Inch, Torsional Stiffness 6,875 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 200 Degrees F

    graingerSKU: 32ZP95, mscSKU: 53903720, zoro_no: G8512743, mongo_id: 65bbe78d3aaddbd5a90a09a8

Web Price
$166.24 / each
Qty

Product Details

1 Degrees
Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
9N
United States
9
4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
N
Angular, Parallel
3.7 hp
134 hp @3,600 RPM, 67 hp @1,800 RPM
3.71 hp
44.55 hp
66.83 hp
133.66 hp
Two-Piece with Retaining Ring
Two-Piece with Retaining Ring
Neoprene
3 in
Sleeve Coupling Insert
Neoprene
3,750 RPM
200 Degrees F
3,750 RPM
2,340 in-lb
0 Degrees F
0 Degrees to 200 Degrees F
6 in
6 in
1
0.025 in
2,340 in-lb
Chemical Resistant, Oil Resistant
9
Inch
6,875 in-lb/rad
2 lb
3.0 in
