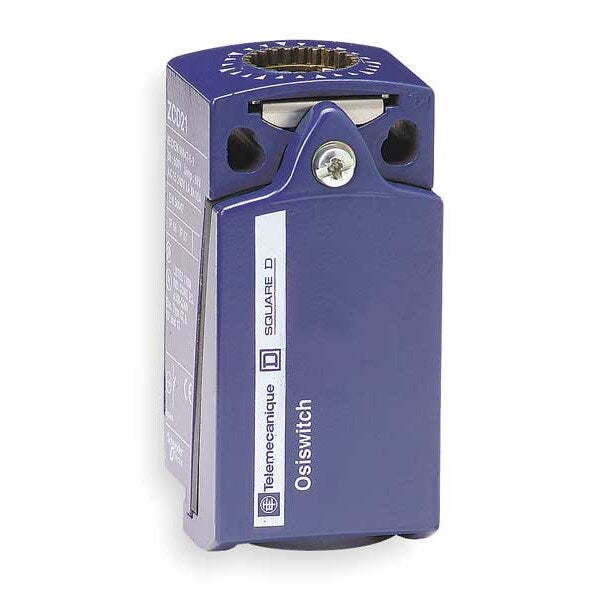

1NC/1NO Compact Limit Switch Body IP 66, 67

SKU
Brand Telemecanique Sensors
Categories
Description Compact Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKM Series Limit Switches, AC Contact Rating 10A @ 240V AC, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection Screw Terminal, IP Rating 66, 67, Operating Temp. -13 Degrees to 158 Degrees F, Standards IEC 60947-5-1
graingerSKU: 4AJ16, mscSKU: 69672418, zoro_no: G3103317, mongo_id: 65bbe85f22d7a989a98f0062

Web Price

$64.19 / each

Qty

Product Details

AC Contact Rating 10A @ 240V AC

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Connection Component ZCDEG13 || ZCDEF12 || ZCDEN12 || ZCDEP20 || ZCDEP16 || ZCDEG11

Associated Head ZCE66 || ZCEH0 || ZCE08 || ZCE21 || ZCE14 || ZCE13 || ZCE24 || ZCE07 || ZCE02 || ZCE29 || ZCE01 || ZCE63 || ZCE06 || ZCE28 || ZCE27 || ZCE64 || ZCE09 || ZCE65 || ZCE62 || ZCE11 || ZCEH2 || ZCE10 || ZCE05 || ZCE67

Body Material zamak

Body Type fixed

Contact Code Designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A

Contact Form 1NC/1NO

Contact Operation snap action

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Multiple

Depth 30 mm

Design compact

Device Short Name ZCD

Electrical Connection Screw Terminal

Electrical Durability 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

For Use With XCKM Series Limit Switches

Height 65-65 mm

IP Rating 66, 67

Minimum Actuation Speed 0.01 m/s

NEMA Rating 1, 12, 2, 3, 4

Number Of Poles 2

Operating Temp. -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with

Product Compatibility XCKD

Product Or Component Type limit switch body

Series XCKM
