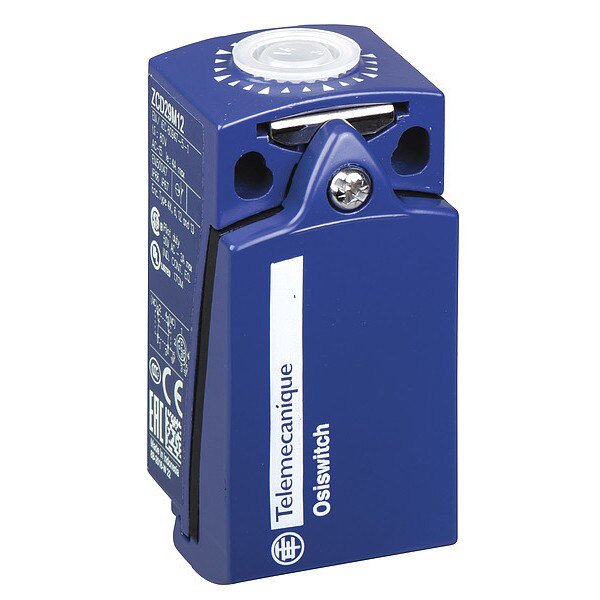

1NC/1NO Compact Limit Switch Body IP 66, 67

SKU
Brand Telemecanique Sensors
Categories
Description Compact Limit Switch Body, M12 Connection, Contact Form 1NO/1NC, For Use With XCKM Series Limit Switches, AC Contact Rating 10A @ 240V AC, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection 4 Pin M12 Connector, IP Rating 66, 67, Operating Temp. -13 Degrees to 158 Degrees F, Standards IEC 60947-5-1 Section 3
graingerSKU: 21HK42, mscSKU: , zoro_no: G7049016, mongo_id: 65bbee2c526e052139af500e

Web Price

$123.11 / each

Qty

Product Details

AC Contact Rating 10A @ 240V AC

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Head ZCE24 || ZCE13 || ZCE63 || ZCE02 || ZCE21 || ZCE66 || ZCE07 || ZCE08 || ZCE06 || ZCE09 || ZCE64 || ZCE27 || ZCE28 || ZCE65 || ZCE11 || ZCEH0 || ZCE01 || ZCE05 || ZCE14 || ZCE67 || ZCE29 || ZCE10 || ZCEH2 || ZCE62

Body Material zamak

Body Type fixed

Contact Code Designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A

Contact Form 1NC/1NO

Contact Operation snap action

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Indonesia

Depth 30 mm

Design compact

Device Short Name ZCD

Electrical Connection 4 Pin M12 Connector

Electrical Durability 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

For Use With XCKM Series Limit Switches

Height 65-65 mm

IP Rating 66, 67

Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3

Minimum Actuation Speed 0.01 m/s

NEMA Rating 1, 12, 2, 3, 4

Number Of Poles 2

Operating Temp. -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with

Product Compatibility XCKD

Product Or Component Type limit switch body
