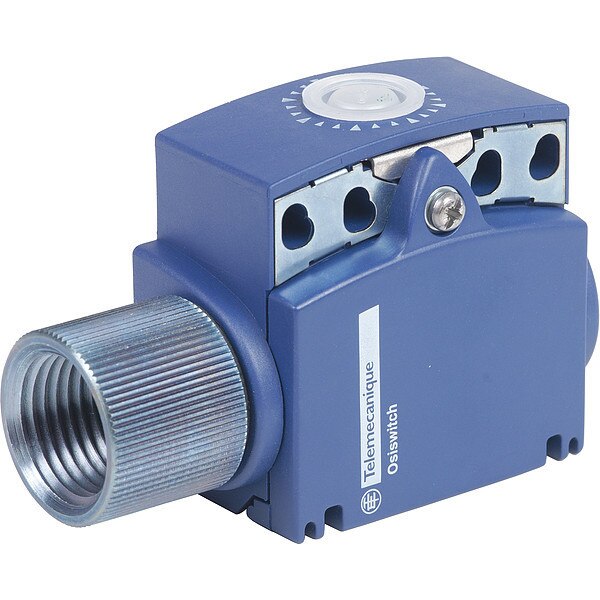

1NC/1NO Compact Limit Switch Body Nema 1, 4, 12 IP 65

SKU
Brand Telemecanique Sensors
Categories
Description Compact Limit Switch Body, 1/2 In. NPT Connection, Contact Form 1NO/1NC, For Use With XCKT Series Limit Switches, AC Contact Rating 6A @ 300V AC, NEMA Rating 1, 12, 4, Electrical Connection Screw Terminal, IP Rating 65, Operating Temp. -13 Degrees to 158 Degrees F, Standards IEC 60947-5-1 Section 3
graingerSKU: 21HK40, mscSKU: , zoro_no: G6727813, mongo_id: 65bbea0522d7a989a998dd01

Web Price

$73.24 / each

Qty

Product Details

AC Contact Rating 6A @ 300V AC

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Head ZCE27 || ZCE65 || ZCE28 || ZCE63 || ZCEH2 || ZCE06 || ZCE14 || ZCE21 || ZCE11 || ZCE66 || ZCE64 || ZCE08 || ZCE05 || ZCE02 || ZCE10 || ZCE07 || ZCE24 || ZCE09 || ZCE62 || ZCE29 || ZCE67 || ZCE01 || ZCEH0 || ZCE13

Body Material plastic

Body Type fixed

Cable Entry 2 entries tapped for 1/2 NPT adaptor 4-8 mm

Contact Code Designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A

Contact Form 1NC/1NO

Contact Operation snap action

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Multiple

Depth 30 mm

Design compact

Device Short Name ZCT

Electrical Connection Screw Terminal

Electrical Durability 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

For Use With XCKT Series Limit Switches

Height 51-51 mm

IP Rating 65

Minimum Actuation Speed 0.01 m/s

NEMA Rating 1, 12, 4

Number Of Poles 2

Operating Temp. -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with

Product Compatibility XCKT

Product Or Component Type limit switch body

Promotion Restriction Not eligible for promotion
