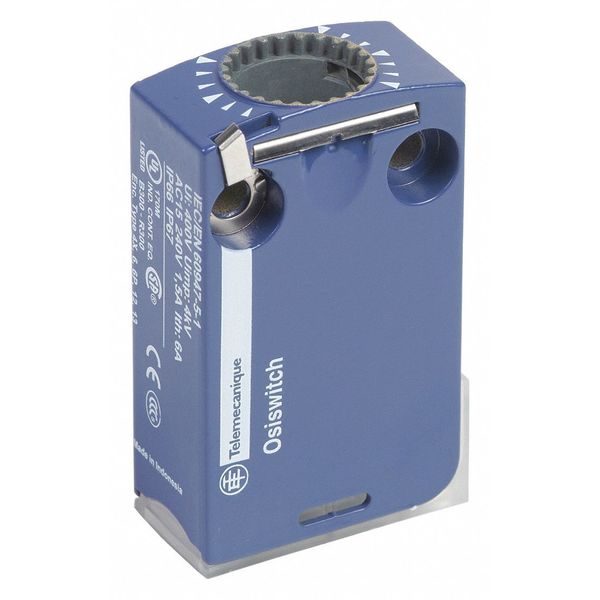

1NC/1NO Miniature Limit Switch Body Nema 4X, 6P, 12, 13

SKU
Brand Telemecanique Sensors
Categories
Description Miniature Limit Switch Body, Contact Form 1NO/1NC, For Use With XCMD Series Limit Switches, AC Contact Rating 10A @ 240V AC, NEMA Rating 12, 13, 4X, 6P, Electrical Connection Plug In, IP Rating 66, 67, Operating Temp. -13 Degrees to 158 Degrees F, Standards IEC 60947-5-1 Section 3
graingerSKU: 21HK59, mscSKU: 92317064, zoro_no: G6177053, mongo_id: 65bbe8d822d7a989a991aee0

Web Price

$61.56 / each

Qty

Product Details

AC Contact Rating 10A @ 240V AC

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Connection Component ZCMC21T2 || ZCMC21L10 || ZCMC21E3 || ZCMC21E7 || ZCMC21E5 || ZCMC21L7 || ZCMC21T5 || ZCMC21T1 || ZCMC21L3 || ZCMC21E1 || ZCMC21L1 || ZCMC21E2 || ZCMC21L5 || ZCMC21L2 || ZCMC21E10

Associated Head ZCE13 || ZCEF2 || ZCE63 || ZCE27 || ZCEH2 || ZCE21 || ZCE10 || ZCE01 || ZCE66 || ZCE64 || ZCE62 || ZCE02 || ZCEH0 || ZCEF0 || ZCE06 || ZCE09 || ZCE29 || ZCE05 || ZCE65 || ZCE67 || ZCE08 || ZCE07 || ZCE14 || ZCE11 || ZCE24 || ZCE28 || ZCEG1

Body Material zamak

Body Type plug-in body

Contact Code Designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A

Contact Form 1NC/1NO

Contact Operation snap action

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Indonesia

Depth 16 mm

Design miniature

Device Short Name ZCMD

Electrical Connection Plug In

Electrical Durability 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

For Use With XCMD Series Limit Switches

Height 50-50 mm

IP Rating 66, 67

Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3

Minimum Actuation Speed 0.01 m/min

NEMA Rating 12, 13, 4X, 6P

Number Of Poles 2

Operating Temp. -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with

Product Compatibility XCMD

Product Or Component Type limit switch body
