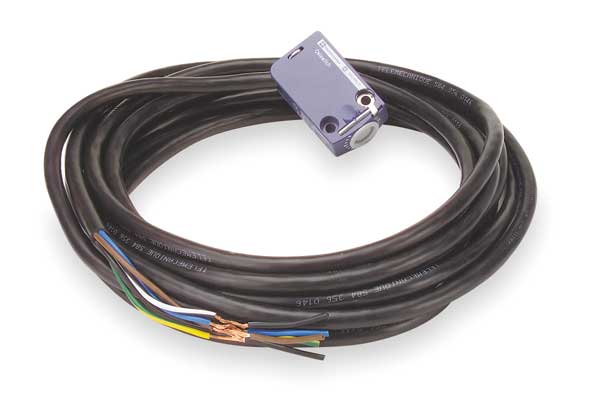

1NC/1NO Miniature Limit Switch Body Nema 4X, 6P, 12, 13

SKU
Brand Telemecanique Sensors
Categories
Description Miniature Limit Switch Body w/5m Cable, Contact Form 1NO/1NC, For Use With XCMD Series Limit Switches, AC Contact Rating 6A @ 300V AC, NEMA Rating 12, 13, 4X, 6P, Electrical Connection Pre-Wired Cable, IP Rating 66, 67, Operating Temp. -13 Degrees to 158 Degrees F, Standards IEC 60947-5-1
graingerSKU: 4AE95, mscSKU: , zoro_no: G2239623, mongo_id: 65bbe7253aaddbd5a9078f68

Web Price

$101.99 / each

Qty

Product Details

AC Contact Rating 6A @ 300V AC

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Head ZCE01 || ZCE29 || ZCE10 || ZCEG1 || ZCE66 || ZCE21 || ZCE09 || ZCEF2 || ZCE06 || ZCE62 || ZCE64 || ZCE65 || ZCE27 || ZCE28 || ZCE11 || ZCE14 || ZCEF0 || ZCE13 || ZCE02 || ZCE63 || ZCE08 || ZCE07 || ZCE67 || ZCE24

Body Material zamak

Body Type fixed

Cable Composition 5 x 0.75 mmÃÂ²

Cable Length 5 m

Contact Form 1NC/1NO

Contact Operation snap action

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Indonesia

Depth 16 mm

Design miniature

Device Short Name ZCMD

Electrical Connection Pre-Wired Cable

Electrical Durability 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

For Use With XCMD Series Limit Switches

Height 50-50 mm

IP Rating 66, 67

Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3

Minimum Actuation Speed 0.01 m/min

NEMA Rating 12, 13, 4X, 6P

Number Of Poles 2

Operating Temp. -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with

Product Compatibility XCMD

Product Or Component Type limit switch body
