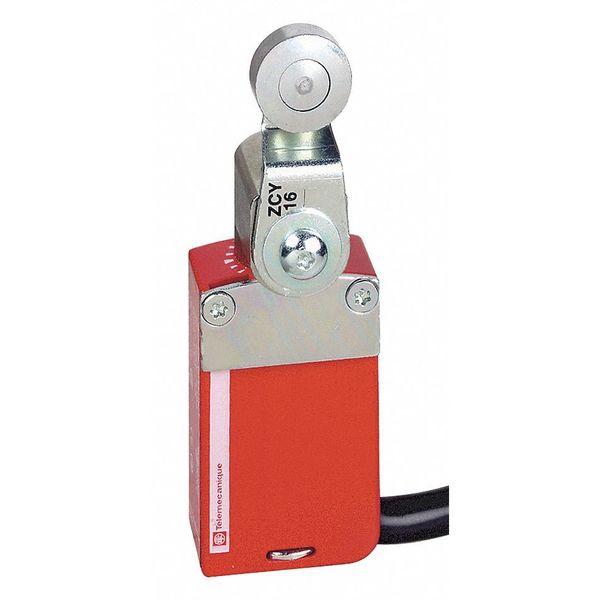

1NC/1NO Safety Interlock Switch IP 66, 67, 68

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Switch, Metal Roller Lever, Contact Form 1NO/1NC, Actuator Length 1.35 in, Connection Type 6.6 ft Dead End Cable, AC Contact Rating 1.5A @ 300V, Series XCSM, DC Contact Rating 1.5A @ 300V, Height 3.7 in, Width 1.18 in, Depth 0.63 in, IP Rating 66, 67, 68, Operating Temp. Range -13 Degrees to 158 Degrees F, Cable Length 6.6 ft, Body Material Zamak, Head Material Zamak
graingerSKU: 12G768, mscSKU: , zoro_no: G3624241, mongo_id: 65bbe5ad3aaddbd5a9fdb288

Web Price

$231.24 / each

Qty

Product Details

AC Contact Rating 1.5A @ 300V

Actuator Length 1.35 in

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material Zamak

Cable Composition 7 x 0.5 mmÃÂ²

Cable Length 6.6 ft

Component Name XCSM

Connection Type 6.6 ft Dead End Cable

Contact Code Designation B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN 60947-5-1 || B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN 60947-5-1 || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A

Contact Form 1NC/1NO

Contact Operation slow-break, break before make

Contacts Type And Composition 1 NC + 1 NC + 1 NO

Country of Origin (subject to change) Indonesia

DC Contact Rating 1.5A @ 300V

Depth 0.63 in

Description/Special Features Plastic Cover, Secured by 5-Lobe Socket Head Safety Screw, Rotary Head, 0.88 lb in Positive Opening Minimum Torque

Design miniature

Electrical Connection pre-cabled

Electrical Shock Protection Class class I NF C 20-030 || class I EN/IEC 61140

Fixing Mode by the body

Head Material Zamak

Head Type rotary head

Height 3.7 in

Ik Degree Of Protection IK06 EN 50102

Ip Degree Of Protection IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529

IP Rating 66, 67, 68

Material metal

Maximum Actuation Speed 1.5 m/s

Maximum Resistance Across Terminals 25 MOhm IEC 60255-7 category 3

Mechanical Durability 10000000 cycles

Minimum Actuation Speed 6 m/min

Minimum Torque For Tripping 0.5 N.m

Movement Horizontal

Number Of Poles 3

Operating Force 4.4 in-lb

Operating Temp. Range -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with NC contact

Positive Opening Minimum Torque 0.1 N.m

Product Certifications CSA || UL

Product Or Component Type safety limit switch

Promotion Restriction Not eligible for promotion

Protection Technology plastic protective cover, secured by 5-lobe socket head safety screw

Protective Treatment TC

Repeat Accuracy 0.05 mm on the tripping points

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508

Series XCSM

Shock Resistance 25 gn 18 ms IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG (gl)

Standards CSA, UL

Style Metal Roller Lever

Switch Actuation by 30ÃÂ° cam

Type Of Approach lateral approach

Type Of Operator steel roller lever

Vibration Resistance 25 gn 10-500 Hz)IEC 60068-2-6

Width 1.18 in

[Uimp] Rated Impulse Withstand Voltage 4 kV IEC 60664 || 4 kV IEC 60947-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 400 V 3)IEC 60947-5-1 || 300 VCSA C22.2 No 14
