Home / 1NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67

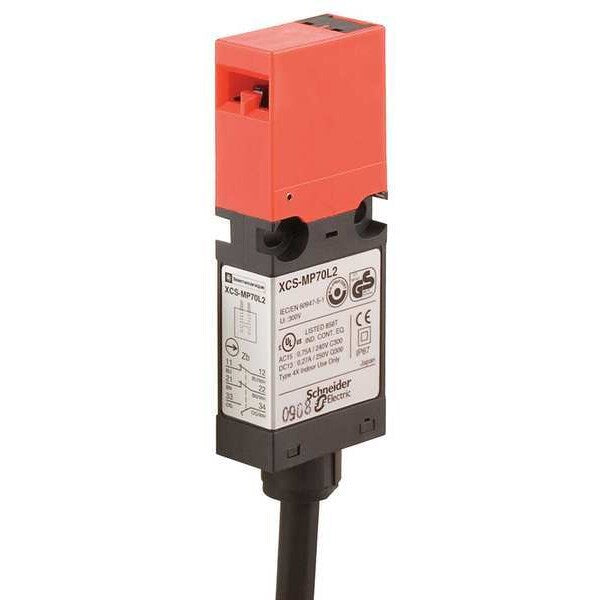

1NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Switch, Actuating Key, Contact Form 1NO/1NC, Actuator Length Key Dependent, Connection Type 6.6 ft Dead End Cable, AC Contact Rating 0.75A @ 240V, 1.5A @ 120V, Series XCSMP, DC Contact Rating 0.27A @ 250V, 0.55A at 125V, Height 0.59 in, Width 1.18 in, Depth 3.42 in, NEMA Rating 12, 4, 4X, IP Rating 67, Operating Temp. Range -13 Degrees to 158 Degrees F, Cable Length 6.6 ft, Body Material Polyamide, Head Material Polyamide
graingerSKU: 10D247, mscSKU: , zoro_no: G3597395, mongo_id: 65bbe8b222d7a989a990cae4

Web Price

$173.74 / each

Qty

Product Details

AC Contact Rating 0.75A @ 240V, 1.5A @ 120V

Actuator Forcible Withdrawal Rtc 8 N

Actuator Length Key Dependent

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -25-80ÃÂ°C

Body Material Polyamide

Cable Composition 4 x 0.5 mmÃÂ²

Cable Length 6.6 ft

Component Name XCSMP

Connection Type 6.6 ft Dead End Cable

Contact Form 1NC/1NO

Contact Operation slow-break, break before make

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Japan

DC Contact Rating 0.27A @ 250V, 0.55A at 125V

Depth 3.42 in

Description/Special Features Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight

Design miniature

Electrical Connection pre-cabled

Electrical Shock Protection Class class II EN/IEC 61140

Head Material Polyamide

Head Type key operated fixed head

Height 0.59 in

Insulation double insulated

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

IP Rating 67

Material plastic

Maximum Actuation Speed 1.5 m/s

Maximum Operating Rate 20 cyc/mn for maximum durability

Mechanical Durability 1000000 cycles

Minimum Actuation Speed 0.05 m/s

Minimum Actuator Force For Extraction 8 N

NEMA Rating 12, 4, 4X

Number Of Poles 2

Operating Force 1.8 lb

Operating Temp. Range -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with NC contact

Product Certifications CSA || UL || cUL

Product Or Component Type safety switch

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Series XCSMP

Shock Resistance 50 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Standards CSA, UL

Style Actuating Key

Vibration Resistance 6 gn 10-55 Hz)IEC 60068-2-6

Width 1.18 in

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1 || 1.5 A 120 V, AC-15, C300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 2.5 A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
