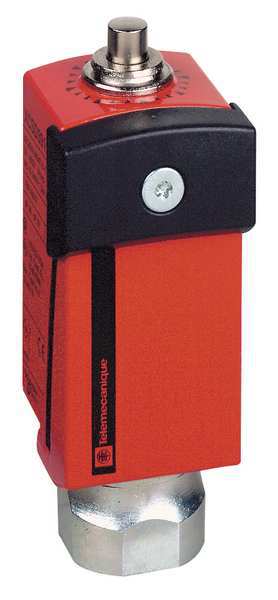

1NC/1NO Safety Interlock Switch Plunger IP 66, 67

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Switch, Metal Plunger, Contact Form 1NO/1NC, Actuator Length 0.39 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 1.5A @ 300V, Series XCSD, DC Contact Rating 1.5A @ 300V, Height 3.51 in, Width 1.18 in, Depth 1.36 in, IP Rating 66, 67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Zamak, Head Material Zamak, Description/Special Features 15 N Minimum Force for Tripping, Plastic Enclosure, Poditive Opening Contacts
graingerSKU: 12G769, mscSKU: , zoro_no: G3657604, mongo_id: 65bbe58a3aaddbd5a9fccc44

Web Price

$181.24 / each

Qty

Product Details

AC Contact Rating 1.5A @ 300V

Actuator Length 0.39 in

Actuator Style Plunger

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material Zamak

Cable Entry 1 entry tapped 1/2 NPT

Clamping Connection Capacity 1 x 0.34...2 x 0.75 mmÃÂ²

Component Name XCSD

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Code Designation B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A

Contact Form 1NC/1NO

Contact Operation slow-break, break before make

Contacts Type And Composition 1 NC + 1 NC + 1 NO

Country of Origin (subject to change) France

DC Contact Rating 1.5A @ 300V

Depth 1.36 in

Description/Special Features 15 N Minimum Force for Tripping, Plastic Enclosure, Poditive Opening Contacts

Design compact

Electrical Connection terminal

Electrical Shock Protection Class class I NF C 20-030 || class I EN/IEC 61140

Enclosure Material Plastic

Head Material Zamak

Head Type plunger head

Height 3.51 in

Ik Degree Of Protection IK06 EN 50102

Ip Degree Of Protection IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529

IP Rating 66, 67

Material metal

Maximum Actuation Speed 0.5 m/s

Maximum Resistance Across Terminals 25 MOhm IEC 60255-7 category 3

Mechanical Durability 15000000 cycles

Minimum Actuation Speed 0.01 m/s

Minimum Force For Tripping 15 N

Movement Vertical

Number Of Poles 3

Operating Force 10.2 lb

Operating Temp. Range -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with NC contact

Positive Opening Minimum Force 45 N

Product Certifications UL || CSA

Product Or Component Type safety limit switch

Promotion Restriction Not eligible for promotion

Protection Technology plastic protective cover, secured by 5-lobe socket head safety screw

Protective Treatment TC

Repeat Accuracy 0.1 mm on tripping points, 1 million operating cycles for head with end plunger

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508

Series XCSD

Shock Resistance 50 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG (gl)

Standards CSA, UL

Style Metal Plunger

Type Of Approach on end approach

Type Of Operator metal end plunger

Vibration Resistance 25 gn 10-500 Hz)IEC 60068-2-6

Width 1.18 in

[Ithe] Conventional Enclosed Thermal Current 6A

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1 || 4 kV IEC 60664

[Ui] Rated Insulation Voltage 300 VUL 508 || 400 V 3)EN/IEC 60947-1 || 300 VCSA C22.2 No 14
