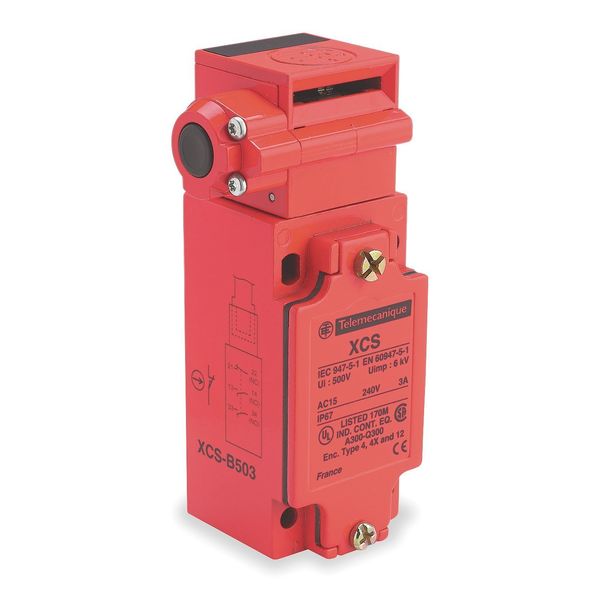

1NC/2NO Safety Interlock Switch

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Switch, Actuating Key, Field Selectable, Contact Form 2NO/1NC, Connection Type 1/2 in NPT Conduit, AC Contact Rating 3A @ 240V, Description/Special Features Push Button Unlocking, With Locking
graingerSKU: , mscSKU: , zoro_no: G2799754, mongo_id: 65bbe73d9a749db822727af4

Web Price

$386.24 / each

Qty

Product Details

AC Contact Rating 3A @ 240V

Actuator Forcible Withdrawal Rtc 1500 N

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material zamak

Cable Entry 1 entry tapped 1/2 NPT

Component Name XCSB

Connection Type 1/2 in NPT Conduit

Contact Form 1NC/2NO

Contact Operation slow-break, break before make

Contacts Type And Composition 1 NC + 2 NO

Country of Origin (subject to change) France

Depth 44 mm

Description/Special Features Push Button Unlocking, With Locking

Design industrial

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class I EN/IEC 61140

Head Material zamak

Head Type key operated turret head

Height 114-114 mm

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Local Signalling without

Material metal

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 600000 cycles

Minimum Actuation Speed 0.01 m/s

Minimum Actuator Force For Extraction 20 N

Number Of Poles 3

Package Quantity 1

Positive Opening with NC contact

Product Certifications CSA || UL

Product Or Component Type safety switch

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Standards CSA C22.2 No 14 || EN/IEC 60204-1 || UL 508 || EN/IEC 60947-5-1 || EN/ISO 12100 || EN 1088/ISO 14119

Style Actuating Key, Field Selectable

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 52 mm

[Ie] Rated Operational Current 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 10A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
