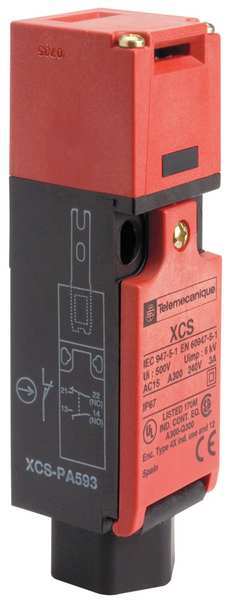

2NC Safety Interlock Switch Nema 4, 4X, 12 IP 67

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Switch, Actuating Key, Contact Form 2NC, Actuator Length Key Dependent, Connection Type 1/2 in NPT Conduit, AC Contact Rating 10A @ 300V, Series XCSPA, DC Contact Rating 6A @ 300V, Height 1.18 in, Width 1.18 in, Depth 4.21 in, NEMA Rating 12, 4, 4X, IP Rating 67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Plastic, Description/Special Features Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight
graingerSKU: 10D252, mscSKU: , zoro_no: G3715871, mongo_id: 65bbea2f22d7a989a999c290

Web Price

$127.49 / each

Qty

Product Details

AC Contact Rating 10A @ 300V

Actuator Forcible Withdrawal Rtc 10 N

Actuator Length Key Dependent

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material plastic

Cable Entry 1 entry tapped 1/2 NPT

Component Name XCSPA

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Form 2NC

Contact Operation slow-break, simultaneous

Contacts Type And Composition 2 NC

Country of Origin (subject to change) Multiple

DC Contact Rating 6A @ 300V

Depth 4.21 in

Description/Special Features Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight

Design compact

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class II EN/IEC 61140

Head Material PA (polyamide)

Head Type key operated turret head

Height 1.18 in

Insulation double insulated

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

IP Rating 67

Material plastic

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 1000000 cycles

Minimum Actuation Speed 0.01 m/s

NEMA Rating 12, 4, 4X

Number Of Poles 2

Operating Force 0.18 ft-lb

Operating Temp. Range -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with NC contact

Positive Opening Minimum Force 15 N

Product Certifications CSA || UL

Product Or Component Type safety switch

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Series XCSPA

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Standards CSA, UL

Style Actuating Key

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 1.18 in

[Ie] Rated Operational Current 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 10A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
