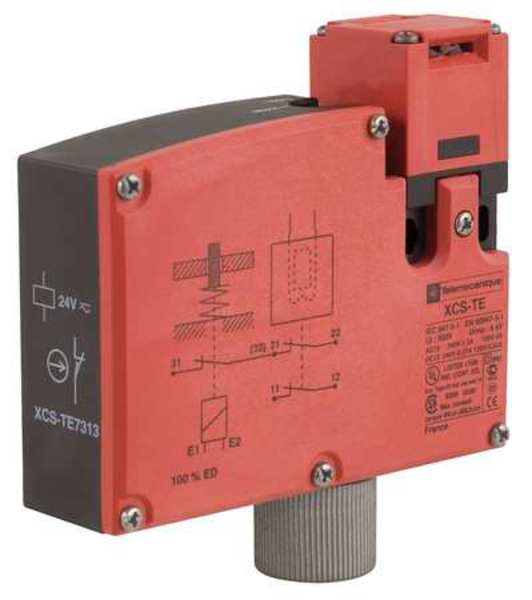

2NC Safety Interlock Switch Nema 4, 4X, 12 IP 67

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Switch, Actuating Key, Solenoid Locking, Contact Form 2NC, Actuator Length Key Dependent, Connection Type 1/2 in NPT Conduit, AC Contact Rating 6A @ 300V, Series XCSTE, DC Contact Rating 3A @ 24V, Solenoid Voltage 24V AC/DC, Height 1.3 in, Width 4.33 in, Depth 3.68 in, NEMA Rating 12, 4, 4X, IP Rating 67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Plastic
graingerSKU: null, mscSKU: null, zoro_no: G3710646, mongo_id: 65bbe67b3aaddbd5a9031596

Web Price

$426.24 / each

Qty

Product Details

AC Contact Rating 6A @ 300V

Actuator Forcible Withdrawal Rtc 500 N

Actuator Length Key Dependent

Ambient Air Temperature For Operation -25-60ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material plastic

Cable Entry 1 entry tapped 1/2 NPT

Component Name XCSTE

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Form 2NC

Contact Operation slow-break, simultaneous

Contacts Type And Composition 2 NC

Country of Origin (subject to change) Multiple

DC Contact Rating 3A @ 24V

Depth 3.68 in

Description/Special Features Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight

Design rectangular

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class II EN/IEC 61140

Electromagnet Interlocking locking on de-energisation and unlocking on energisation of solenoid

Head Material PA (polyamide)

Head Type key operated turret head

Height 1.3 in

Insulation double insulated

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

IP Rating 67

Load Factor 1

Material plastic

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 1000000 cycles

Minimum Actuation Speed 0.01 m/s

NEMA Rating 12, 4, 4X

Number Of Poles 2

Operating Force 3.4 lb

Operating Temp. Range -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with NC contact

Positive Opening Minimum Force 15 N

Power Consumption In Va 10 VA

Product Certifications UL || CSA

Product Or Component Type safety switch

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Series XCSTE

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Solenoid Contacts Type And Composition 1 NC slow-break)

Solenoid Voltage 24V AC/DC

Standards CSA, UL

Style Actuating Key, Solenoid Locking

Supply Frequency 50/60 Hz

Supply Voltage Type AC/DC

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 4.33 in

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 6A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14

[Us] Rated Supply Voltage 24 V - 20...10 %
