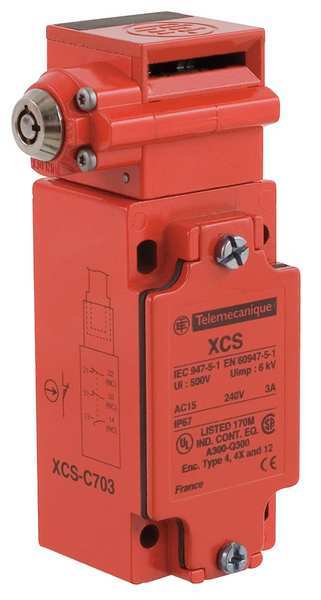

2NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Switch, Actuating Key, Tubular Key Unlock, Contact Form 1NO/2NC, Actuator Length Key Dependent, Connection Type 1/2 in NPT Conduit, AC Contact Rating 10A @ 300V, Series XCSC, DC Contact Rating 6A @ 300V, Height 1.73 in, Width 2.05 in, Depth 4.47 in, NEMA Rating 12, 4, 4X, IP Rating 67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Zamak, Head Material Zamak
graingerSKU: 10D244, mscSKU: , zoro_no: G3718136, mongo_id: 65bbe9b522d7a989a99712c5

Web Price

$401.24 / each

Qty

Product Details

AC Contact Rating 10A @ 300V

Actuator Forcible Withdrawal Rtc 1500 N

Actuator Length Key Dependent

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material Zamak

Cable Entry 1 entry tapped 1/2 NPT

Component Name XCSC

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Form 2NC/1NO

Contact Operation slow-break, break before make

Contacts Type And Composition 2 NC + 1 NO

Country of Origin (subject to change) France

DC Contact Rating 6A @ 300V

Depth 4.47 in

Description/Special Features Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight

Design industrial

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class I EN/IEC 61140

Head Material Zamak

Head Type key operated turret head

Height 1.73 in

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

IP Rating 67

Local Signalling without

Material metal

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 600000 cycles

Minimum Actuation Speed 0.01 m/s

Minimum Actuator Force For Extraction 20 N

NEMA Rating 12, 4, 4X

Number Of Poles 3

Operating Force 4.5 lb

Operating Temp. Range -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with NC contact

Product Certifications UL || CSA

Product Or Component Type safety switch

Promotion Restriction Not eligible for promotion

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Series XCSC

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Standards CSA, UL

Style Actuating Key, Tubular Key Unlock

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 2.05 in

[Ie] Rated Operational Current 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 10A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
