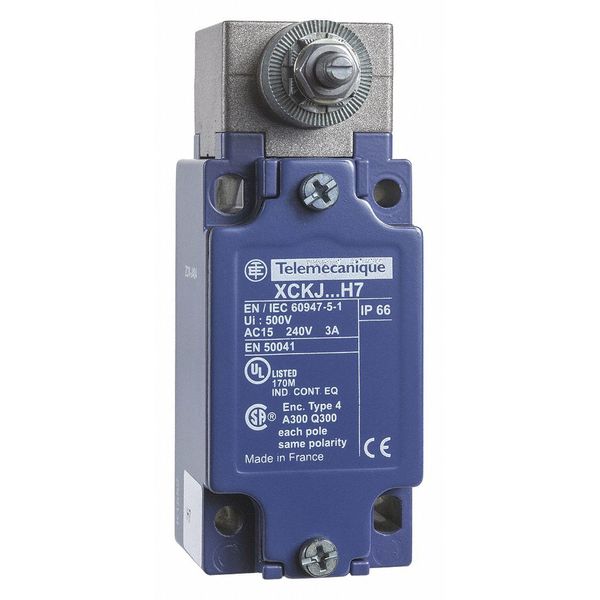

2NC/2NO Heavy Duty Limit Switch Rotary Head IP 66
2NC/2NO Heavy Duty Limit Switch Rotary Head IP 66

2NC/2NO Heavy Duty Limit Switch Rotary Head IP 66

  • Telemecanique Sensors
  • Heavy Duty Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 2NC/2NO, Body Height - Limit Switch 4.01 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 2.36 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface

    graingerSKU: 4B777, mscSKU: , zoro_no: G2130712, mongo_id: 65bbea2f22d7a989a999c294

Web Price
$239.99 / each
Qty

Product Details

10A @ 600V
10A @ 600V
Side
Side
Side
Rotary Head, No Lever
Rotary, No Lever
No Lever, Rotary
-40-70°C low temperature
-40-70°C
10
Rotary
Rotary
2.36 in
4.01 in
Zinc
Standard
Standard
fixed
1.57 in
No
No
1 entry tapped for 1/2 NPT conduit
2NC/2NO
2NC/2NO
2NC/2NO
snap action
silver plated contacts
2 C/O
France
10A @ 600V
10A @ 600V
1.73
ZCKJ
Screw Terminals
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
low temperature
4.29
IK07
IP66
66
Heavy Duty Limit Switch
0.25 mOhm IEC 60255-7 category 3
0.01 m/min
Surface
(4) 0.21 in dia
4 Hole Rectangular
2.36 in x 1.18 in
CCW, CW
1, 12, 13, 2, 4
2
2 3 positions
2.21 in-lb
-13 Degrees to 158 Degrees F
1
without
XCKJ
limit switch body with spring return rotary head
XCKJ
standard format
10 A cartridge fuse gG
CE, CSA, UL
No Stem
from left and right
(23-24)NO || (21-22)NC || (11-12)NC || (13-14)NO
Total Travel 90 Degrees
600VAC/VDC
1.67
1/2 in NPT
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
10 A
6 kV IEC 60664 || 6 kV IEC 60947-1
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
