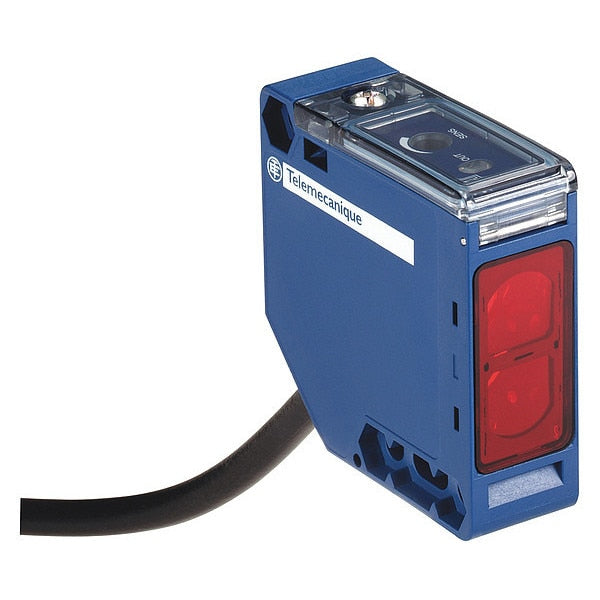

Ac/Dc Relayuniversalsubcompact2M Cable

SKU
Brand Telemecanique Sensors
Categories
Description Relay, Status Indicator No Indicator
graingerSKU: 48P943, mscSKU: 69535128, zoro_no: G0572139, mongo_id: 65bbe88a9a749db822798efa

Web Price

$213.74 / each

Qty

Product Details

Add On Output without, <= 50 mA overload and short-circuit protection

Ambient Air Temperature For Operation -25-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Length 2 m

Country of Origin (subject to change) Indonesia

Depth 50 mm

Detection System multimode

Discrete Output Function 1 NO or 1 NC programmable

Electrical Connection cable

Electrical Durability 500000 cycles 1 60 cyc/mn 250 V

Electronic Sensor Type photo-electric sensor

Emission infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex

Enclosure Material PBT

Height 50 mm

Ip Degree Of Protection IP65 double insulation IEC 60529

Lens Material PMMA

Material plastic

Maximum Delay First Up 300 ms

Maximum Delay Recovery 25 ms

Maximum Delay Response 25 ms

Maximum Power Consumption In W 3 W AC/DC

Maximum Sensing Distance 35 m thru beam || 0.28 m diffuse with background suppression || 1.2 m diffuse || 5.7 m polarised reflex

Maximum Voltage Drop <1.5 V closed state)

Output Type relay

Package Quantity 1

Product Certifications CE || UL || CSA

Promotion Restriction Not eligible for promotion

Sensor Design compact 50 x 50

Sensor Name XUK

Series Name general purpose multimode

Setting-Up self-teaching

Shock Resistance 30 gn 11 ms) IEC 60068-2-27

Status Led 1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state

Supply Circuit Type AC/DC

Supply Voltage Limits 20-264 V AC || 20-264 V DC

Switching Capacity In Ma 3 A cos ÃÂ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)

Switching Frequency <= 20 Hz

Time Delay Range 0 to 10 s monostable, on-delay or off-delay (programmable)

Type Of Output Signal discrete

Vibration Resistance 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6

Width 18 mm

Wire Insulation Material PvR

Wiring Technique 5-wire

[Sn] Nominal Sensing Distance 4-4 m polarised reflex need reflector XUZC50 || 30-30 m thru beam need a transmitter XUK0ARCTL2T || 0.28-0.28 m diffuse with background suppression || 0.8-0.8 m diffuse

[Us] Rated Supply Voltage 24 to 240 V AC || 24 to 240 V DC
