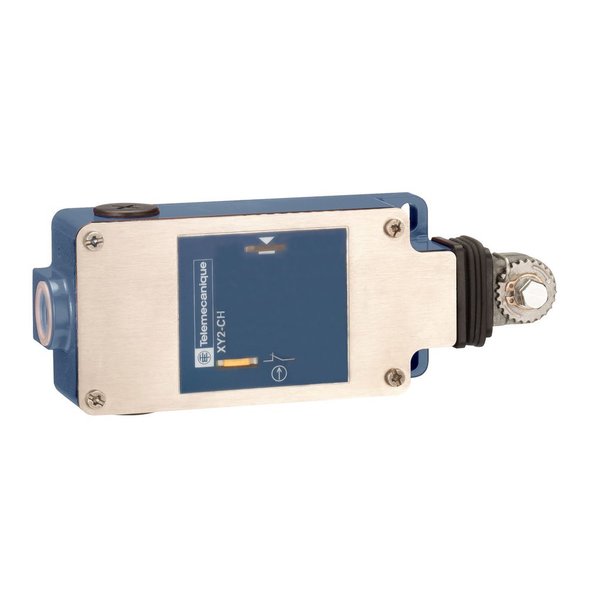

Cable Pull Switch 240Vac 10Amp Xy2C +Opt

SKU
Brand Telemecanique Sensors
Categories
Description Cable Pull Switch 240Vac 10Amp Xy2C +Opt
graingerSKU: 48L321, mscSKU: 54424114, zoro_no: G0557929, mongo_id: 65bbe76a9a749db8227360d9

Web Price

$332.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material zamak

Cable Entry Number 3 tapped entry Pg 13.5 cable gland

Compatibility Code XY2CE

Connections - Terminals screw clamp terminal, 1 x 0.5 to 2 x 1.5 mmÃÂ² || screw clamp terminal, 1 x 0.34 to 2 x 0.75 mmÃÂ²

Contact Operation snap action

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Multiple

Cover Material stainless steel

Device Short Name XY2CE

Distance Between Cable Supports 5-5 m

Housing Colour blue

Ip Degree Of Protection IP66 IEC 60529

Local Signalling without pilot light

Marking CE

Maximum Resistance Across Terminals 25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A

Mechanical Durability 800000 cycles

Number Of Cables 1

Overvoltage Category class I EN/IEC 61140 || class I NF C 20-030

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1

Product Certifications UL category NISD emergency stop devices || CCC

Product Or Component Type latching emergency stop rope pull switch

Promotion Restriction Not eligible for promotion

Protective Treatment TC

Reset by booted push-button

Safety Level can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 50 gn 11 ms EN/IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60269

Standards machinery directive 2006/42/EC || EN/ISO 13850 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || work equipment directive 2009/104/EC || CSA C22.2 No 14

Terminals Description Iso NÃÂ°1 (21-22)NC || (13-14)NO

Tightening Torque 0.8-1.2 N.m

Trigger Cable Anchor Point RH or LH side

Trigger Cable Maximum Length 15 m

Vibration Resistance 10 gn 10-300 Hz)EN/IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 500 V 3)EN/IEC 60947-1 || 300 VUL 508
