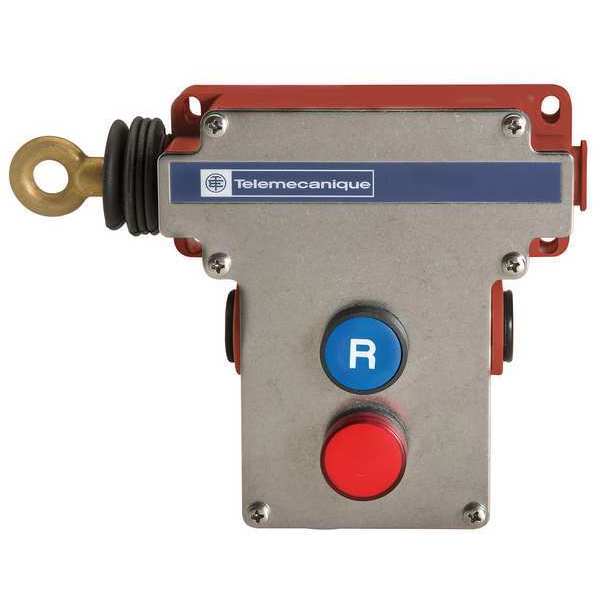

Cable Pull Switch, Left, 2NO+2NC, 24/120VAC

SKU
Brand Telemecanique Sensors
Categories
Description Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Single End, AC Contact Rating 3A @ 240V AC, Contact Form 2NC/2NO, Push Button Reset, Max. Cable Span 165 ft, Operating Force Not Applicable, NEMA Rating 1, 12, 4, Indicator 24/120V AC LED, Cable Connection Location Left, Thermal Amperage 10 A, Length 9.0 in, Width 9.02 in, Depth 4.13 in, Switching Ability Single Cable, DC Contact Rating 0.27A @ 250V DC, Min. Current Not Applicable, Case Material Zamak
graingerSKU: 4B785, mscSKU: , zoro_no: G2559216, mongo_id: 65bbe9db22d7a989a997f7c4

Web Price

$578.74 / each

Qty

Product Details

AC Contact Rating 3A @ 240V AC

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material zamak

Cable Connection Location Left

Cable Entry Number 3 plain hole Pg 13.5 or ISO M20 cable gland

Case Material Zamak

Compatibility Code XY2CE

Connections - Terminals screw clamp terminal, 1 x 0.5 to 2 x 1.5 mmÃÂ²

Contact Form 2NC/2NO

Contact Operation slow-break

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Multiple

Cover Material stainless steel

DC Contact Rating 0.27A @ 250V DC

Depth 4.13 in

Device Short Name XY2CE

Distance Between Cable Supports 5-5 m

For Use With Preventa XPS Safety Relays

Housing Colour red RAL 3000

Indicator 24/120V AC LED

Ip Degree Of Protection IP66 IEC 60529

IP Rating 65

Length 9.0 in

Length (Straight Wireway) 9.0 in

Local Signalling without pilot light

Marking CE

Max. Cable Span 165 ft

Maximum Resistance Across Terminals 25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A

Mechanical Durability 60000 cycles

Min. Current Not Applicable

Mounting Style Single End

NEMA Rating 1, 12, 4

Number Of Cables 1

Operating Force Not Applicable

Overvoltage Category class I EN/IEC 61140 || class I NF C 20-030

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1

Product Certifications UL category NISD emergency stop devices || CSA || CCC

Product Or Component Type latching emergency stop rope pull switch

Protective Treatment TC

Reset Push Button

Safety Level can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 50 gn 11 ms EN/IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60269

Standards CSA Certified, UL Listed

Switch Function Maintained

Switching Ability Single Cable

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Thermal Amperage 10 A

Tightening Torque 0.8-1.2 N.m

Trigger Cable Anchor Point LH side

Trigger Cable Maximum Length 70 m

Vibration Resistance 10 gn 10-300 Hz)EN/IEC 60068-2-6

Width 9.02 in
