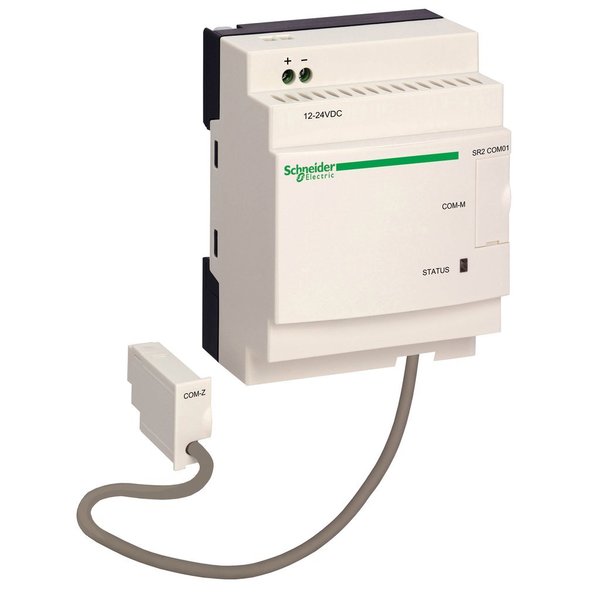

Communication interface-for smart rela

SKU
Brand Telemecanique Sensors
Categories
Description Communication interface - for smart rela
graingerSKU: , mscSKU: , zoro_no: G600422476, mongo_id: 65bbe5f83aaddbd5a9ffb6d6

Web Price

$281.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-40 ÃÂ°C IEC 60068-2-1 and IEC 60068-2-2 || -20-55 ÃÂ°C IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Storage -40-70 ÃÂ°C

Associated Fuse Rating 1A

Connections - Terminals screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) solid || screw terminals, 2 x 0.2 to 2 x 1.5 mmÃÂ² AWG 24 to AWG 16) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mmÃÂ² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.25 to 2 x 0.75 mmÃÂ² AWG 24 to AWG 18) flexible with cable end

Country of Origin (subject to change) France

Data Backed Up flash memory

Disturbance Radiated/Conducted class B EN 55022-11 group 1

Electrical Connection 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol link with the modem, AT commands || 1 cable Com-Z specific to Zelio, specific Zelio communication protocol Zelio Logic smart relays SR.B to .. and SR2 E to .. Version (>= V3.1)

Electrical Data Recording discrete and digital value || telephone/e-mail || date and time

Environmental Characteristic EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2

Function Available update firmware monitoring || send alarm to e-mail address || send alarm/receive instruction || transfer program

Insulation 1780 V optocoupler Com-Z specific to Zelio || by the cable SR2 CBL07 Com-M specific to Zelio

Ip Degree Of Protection IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)

Kit Composition 1 x SR2CBL07 || modem communication interface

Maximum Altitude Transport 3048 m

Maximum Supply Current 30 mA 12 V || 30 mA 24 V || 550 A

Number Of Messages 28

Operating Altitude 6561.68 ft (2000 m)

Package Quantity 1

Pollution Degree 2 EN/IEC 61131-2

Power Dissipation In W 1.1 W

Product Certifications GOST || CSA || C-tick || UL

Product Compatibility SR2E || SR.B

Product Or Component Type modem communication interface

Relative Humidity 95-95 % without condensation or dripping water

Reverse Polarity Protection with

Standards EN/IEC 61000-4-11 || EN/IEC 61000-4-3 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-12 || EN/IEC 61000-4-5 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-6 level 3 || EN/IEC 60068-2-6 Fc

Supply Voltage Limits 10-28.8 V

Tightening Torque 0.5 N.m

[Us] Rated Supply Voltage 12 to 24 V DC
