Home / Cordset, 16.4 ft., Black, 250VAC/300VDC

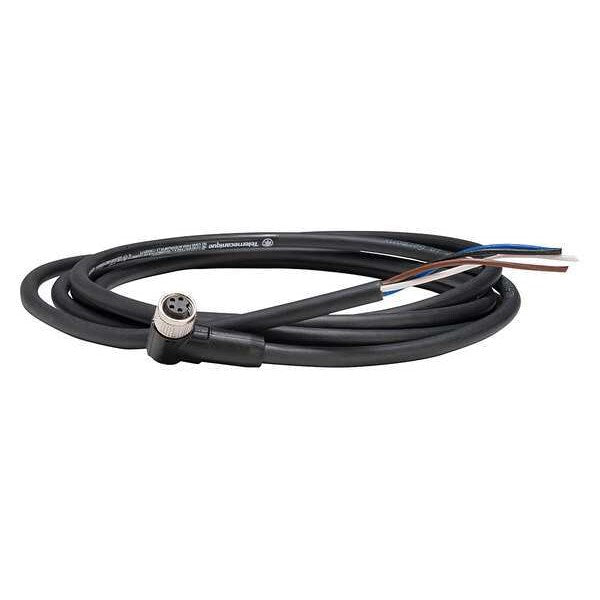

Cordset, 16.4 ft., Black, 250VAC/300VDC

SKU
Brand Telemecanique Sensors
Categories
Description Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 4, End 1 Mounting Orientation Right Angle, End 1 Connection Type M8, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed, End 1 Number of Keyways 1
graingerSKU: 19MJ12, mscSKU: 69535318, zoro_no: G6414992, mongo_id: 65bbe88b22d7a989a98fe409

Web Price

$28.19 / each

Qty

Product Details

Accessory / Separate Part Category cabling accessory

Accessory / Separate Part Type pre-wired connectors

Ambient Air Temperature For Operation -40-80ÃÂ°C static || -5-80ÃÂ°C flexing

Ambient Air Temperature For Storage -40-80ÃÂ°C

Cable Composition 4 x 0.34 mmÃÂ²

Cable Connector Fixing screw-on

Cable Jacket Color Black

Cable Jacket Material PUR

Cable Length 5m

Cable Outer Diameter 5.2 mm

Collar Material metal

Connector Type M8

Contact Resistance 5000ÃÂµOhm

Cordset Configuration M8 Female Right Angle X Bare Wire

Cordset Type Single-Ended

Country of Origin (subject to change) Czechia

Electrical Connection elbowed female connector M8, 4 pins

End 1 Connection Type M8

End 1 Gender Female

End 1 Gender and Plug End Female Right Angle

End 1 Keyway Single

End 1 Mounting Orientation Right Angle

End 1 Number of Keyways 1

End 1 Number of Pins 4

End 1 Thread M8

End 2 Connection Type Bare Wire

End 2 Gender and Plug End Bare Wire

Features Good Resistance to Severe Mechanical Stress; Friction; Abrasion; Torsion; Hot and Cold Oils; Greases and Lubricants; Halogen Free; Mercury Free

Ip Degree Of Protection IP67 || IP65 || IP69K

IP Rating IP65, IP67, IP69K

Jacket Color Black

Jacket Material PUR

Line Rated Current 4A

Max. Amps 4A

Max. Voltage 60VAC/75VDC

Maximum Operating Temperature 176 Degrees F

Minimum Insulating Resistance 1 GÃ¢ÂÂ¦

Minimum Operating Temperature -13 Degrees F

Number of Conductors 4

Number of Pins 4
