Home / Cordset, 6.56 ft., Black, 250VAC/300VDC

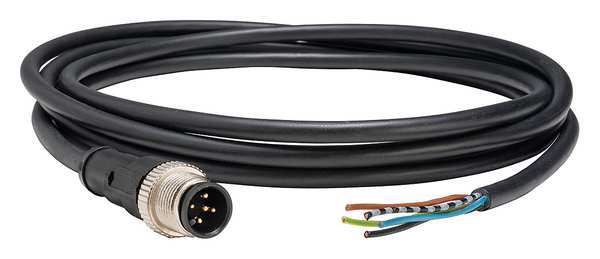

Cordset, 6.56 ft., Black, 250VAC/300VDC

SKU
Brand Telemecanique Sensors
Categories
Description Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed, End 1 Number of Keyways 1
graingerSKU: , mscSKU: , zoro_no: G7232531, mongo_id: 65bbe73d9a749db822727af7

Web Price

$36.44 / each

Qty

Product Details

Accessory / Separate Part Category cabling accessory

Accessory / Separate Part Type pre-wired connectors

Ambient Air Temperature For Operation -40-80ÃÂ°C static || -5-80ÃÂ°C flexing

Ambient Air Temperature For Storage -40-80ÃÂ°C

Cable Composition 4 x 0.34 mmÃÂ² || 1 x 0.5 mmÃÂ²

Cable Connector Fixing screw-on

Cable Jacket Color Black

Cable Jacket Material PUR

Cable Length 2m

Cable Outer Diameter 5.9 mm

Collar Material metal

Connector Type M12

Contact Resistance 5000ÃÂµOhm

Cordset Configuration M12 Male Straight X Bare Wire

Cordset Type Single-Ended

Country of Origin (subject to change) Czechia

Electrical Connection straight male connector M12, 5 pins (included earth pin)

End 1 Connection Type M12

End 1 Gender Male

End 1 Gender and Plug End Male Straight

End 1 Keyway Single

End 1 Mounting Orientation Straight

End 1 Number of Keyways 1

End 1 Number of Pins 5

End 1 Thread M12

End 2 Connection Type Bare Wire

End 2 Gender and Plug End Bare Wire

Features Good Resistance to Severe Mechanical Stress; Friction; Abrasion; Torsion; Hot and Cold Oils; Greases and Lubricants; Halogen Free; Mercury Free

Ip Degree Of Protection IP69K || IP65 || IP67

IP Rating IP65, IP67, IP69K

Jacket Color Black

Jacket Material PUR

Line Rated Current 4A

Max. Amps 4A

Max. Voltage 60VAC/75VDC

Maximum Operating Temperature 176 Degrees F

Minimum Insulating Resistance 1 GÃ¢ÂÂ¦

Minimum Operating Temperature -13 Degrees F

Number of Conductors 5

Number of Pins 5
