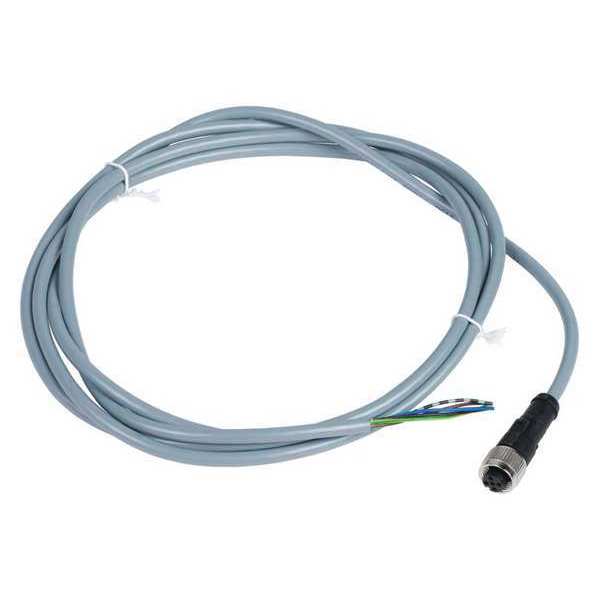

Home / Cordset, 6.56 ft., Gray, 250VAC/300VDC

Cordset, 6.56 ft., Gray, 250VAC/300VDC

SKU
Brand Telemecanique Sensors
Categories
Description Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed, End 1 Number of Keyways 1
graingerSKU: 19MJ27, mscSKU: , zoro_no: G9726053, mongo_id: 65bbe98f22d7a989a9962b6d

Web Price

$34.19 / each

Qty

Product Details

Accessory / Separate Part Category cabling accessory

Accessory / Separate Part Type pre-wired connectors

Ambient Air Temperature For Operation -25-80ÃÂ°C static

Ambient Air Temperature For Storage -25-80ÃÂ°C

Cable Composition 5 x 0.25 mmÃÂ²

Cable Connector Fixing screw-on

Cable Jacket Color Gray

Cable Jacket Material PVC

Cable Length 2m

Cable Outer Diameter 4.6 mm

Collar Material metal

Connector Type M12

Contact Resistance 5000ÃÂµOhm

Cordset Configuration M12 Female Straight X Bare Wire

Cordset Type Single-Ended

Country of Origin (subject to change) Poland

Electrical Connection straight female connector M12, 5 pins

End 1 Connection Type M12

End 1 Gender Female

End 1 Gender and Plug End Female Straight

End 1 Keyway Single

End 1 Mounting Orientation Straight

End 1 Number of Keyways 1

End 1 Number of Pins 5

End 1 Thread M12

End 2 Connection Type Bare Wire

End 2 Gender and Plug End Bare Wire

Features Good Resistance to Severe Mechanical Stress; Friction; Abrasion; Torsion; Hot and Cold Oils; Greases and Lubricants; Halogen Free; Mercury Free

Ip Degree Of Protection IP67 || IP65

IP Rating IP65, IP67

Jacket Color Gray

Jacket Material PVC

Line Rated Current 3A

Max. Amps 3A

Max. Voltage 60VAC/75VDC

Maximum Operating Temperature 176 Degrees F

Minimum Insulating Resistance 1 GÃ¢ÂÂ¦

Minimum Operating Temperature -13 Degrees F

Number of Conductors 5

Number of Pins 5
