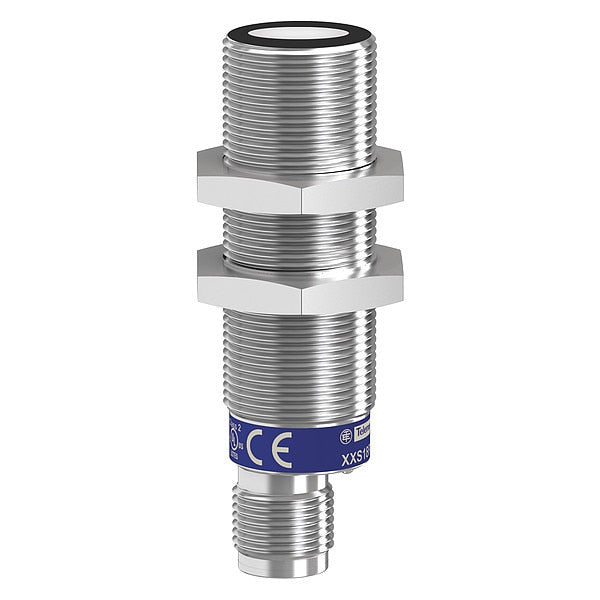

Cylindrical Ultrasonic Sensor, 18mm dia.

Cylindrical Ultrasonic Sensor, 18mm dia.

  • Telemecanique Sensors
  • Cylindrical Ultrasonic Sensor, Case Material Nickel plated brass, Diameter 18 mm, 4 to 20mA Output, Circuit Type Analogue, Electrical Connection 5 Pin M12 Male Connector, Length 0.71 in, Width 0.71 in, Depth 2.52 in, Power Required 10 to 30V DC, IP Rating 65, 67, Operating Frequency 200 kHz, Standards CSA C22.2 No 14, EN/IEC 60947-5-2, UL 508, Operating Temp. Range -13 Degrees F to 158 Degrees F, Description/Special Features With synchronization mode, Software configurable

    graingerSKU: 55WX44, mscSKU: , zoro_no: G3464028, mongo_id: 65bbe74d3aaddbd5a90874a5

Web Price
$491.24 / each
Qty

Product Details

-25-70°C
-40-80°C
4...20 mA
105-105 mm
Nickel plated brass
Analogue
United States
30 mA
2.52 in
With synchronization mode, Software configurable
diffuse
-10-10°
18 mm
5 Pin M12 Male Connector
Nickel Plated Brass
epoxy || rubber || resin
with synchronisation mode || software configurable
18 mm
IP65 conforming to IEC 60529 || IP67
65, 67
0.71 in
0.71 in
CE
metal
180 ms
100 ms
250 Ohm 12 V DC overload and short-circuit protection || 850 Ohm 24 V DC
cylinder diameter 1 mm 600 mm
200 kHz
-13 Degrees F to 158 Degrees F
4 to 20mA
1
10 to 30V DC
EAC || E2 || RCM || cULus || Ecolab
Not eligible for promotion
0.001
10 V/m level 3 IEC 61000-4-3
8 kV level 4 IEC 61000-4-2
1 kV level 3 IEC 61000-4-4
100 msec
cylindrical M18
XXS
ultrasonic sensor
general purpose
teach mode || configurator software
30 gn in all 3 axes 11 ms IEC 60068-2-27
CSA C22.2 No 14, EN/IEC 60947-5-2, UL 508
output state 1 LED yellow) || echo state 1 LED green)
10-30 V DC
45 mm
200 kHz
analogue
+/-1 mm 10-55 Hz)IEC 60068-2-6
0.71 in
5-wire
0.105-1 m teach mode)
0.105-1 m
1-1 m adjustable with remote teach push-button || 1-1 m software with kit
12...24 V DC reverse polarity protection
