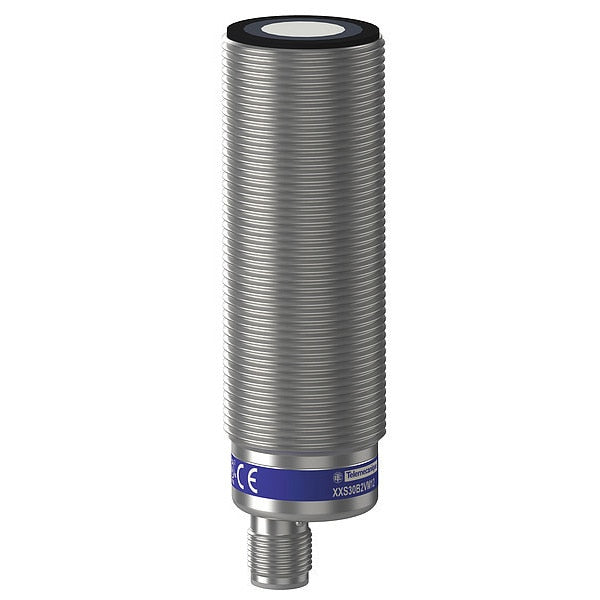

Cylindrical Ultrasonic Sensor, 30mm dia.
Web Price
$556.24
/ each
Product Details
-25-70ðC
-40-80ðC
0...10 V
155-155 mm
Nickel plated brass
Analogue
United States
65 mA
4.02 in
With synchronization mode, Software configurable
diffuse
-12-12ð
30 mm
5 Pin M12 Male Connector
Nickel Plated Brass
epoxy || rubber || resin
with synchronisation mode || software configurable
30 mm
IP65 conforming to IEC 60529 || IP67
65, 67
1.18 in
1.18 in
CE
metal
250 ms
200 ms
>= 1 kOhm overload and short-circuit protection
cylinder diameter 1 mm 1.4 m
120 kHz
-13 Degrees F to 158 Degrees F
0 to 10V
1
14 to 30V DC
cULus || E2 || EAC || RCM || Ecolab
Not eligible for promotion
0.001
10 V/m level 3 IEC 61000-4-3
8 kV IEC 61000-4-2
2 kV IEC 61000-4-4
200 msec
cylindrical M30
XXS
ultrasonic sensor
general purpose
teach mode || configurator software
30 gn in all 3 axes 11 ms IEC 60068-2-27
CSA C22.2 No 14, EN/IEC 60947-5-2, UL 508
output state 1 LED yellow) || echo state 1 LED green)
14-30 V DC
75.75 mm
120 kHz
analogue
+/-1 mm 10-55 Hz)IEC 60068-2-6
1.18 in
5-wire
0.155-2 m teach mode)
0.155-2 m
2-2 m adjustable with remote teach push-button || 2-2 m software with kit
24 V DC reverse polarity protection
