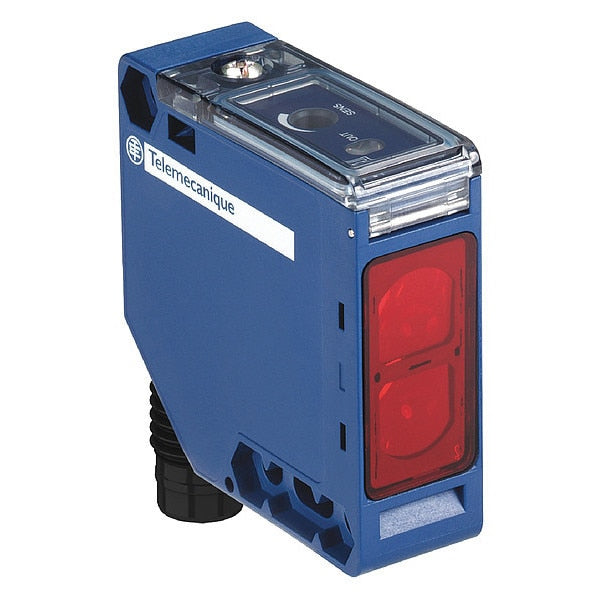

Dcpnp/Npnuniversal Subcompactm12 Connect

SKU
Brand Telemecanique Sensors
Categories
Description Dcpnp/Npnuniversal Subcompactm12 Connect
graingerSKU: 48T332, mscSKU: 69656775, zoro_no: G0653865, mongo_id: 65bbe58a3aaddbd5a9fccc53

Web Price

$177.49 / each

Qty

Product Details

Add On Output with alarm output, <= 50 mA overload and short-circuit protection

Ambient Air Temperature For Operation -25-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Country of Origin (subject to change) Indonesia

Current Consumption <= 35 mA no-load

Depth 50 mm

Detection System multimode

Discrete Output Function 1 NO or 1 NC programmable

Discrete Output Type PNP or NPN

Electrical Connection 1 male connector M12, 4 pins

Electronic Sensor Type photo-electric sensor

Emission infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex

Enclosure Material PBT

Height 50 mm

Ip Degree Of Protection IP65 double insulation IEC 60529

Lens Material PMMA

Material plastic

Maximum Delay First Up 200 ms

Maximum Delay Recovery 2 ms

Maximum Delay Response 2 ms

Maximum Sensing Distance 35 m thru beam || 0.28 m diffuse with background suppression || 1.2 m diffuse || 5.7 m polarised reflex

Maximum Voltage Drop <1.5 V closed state)

Output Type solid state

Package Quantity 1

Product Certifications CE || CSA || UL

Promotion Restriction Not eligible for promotion

Sensor Design compact 50 x 50

Sensor Name XUK

Series Name general purpose multimode

Setting-Up self-teaching

Shock Resistance 30 gn 11 ms) IEC 60068-2-27

Status Led 1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state

Supply Circuit Type DC

Supply Voltage Limits 10-36 V DC

Switching Capacity In Ma <= 100 mA overload and short-circuit protection)

Switching Frequency <= 250 Hz

Type Of Output Signal discrete

Vibration Resistance 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6

Width 18 mm

Wiring Technique 3-wire

[Sn] Nominal Sensing Distance 4-4 m polarised reflex need reflector XUZC50 || 30-30 m thru beam need a transmitter XUK0AKSAM12T || 0.28-0.28 m diffuse with background suppression || 0.8-0.8 m diffuse

[Us] Rated Supply Voltage 12...24 V DC reverse polarity protection
