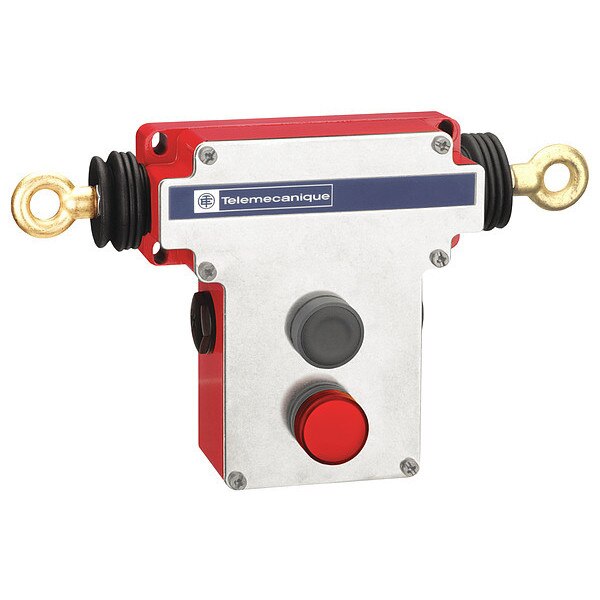

Emergency Cable Pull Switch, 3A @ 240VAC

SKU
Brand Telemecanique Sensors
Categories
Description Emergency Cable Pull Switch, AC Contact Rating 3A @ 240V AC, Contact Form 2 x (1 NC/1 NO), Flush Push Button Reset, Cable Connection Location Left and Right, Thermal Amperage 10 A, Length 12.89 in, 13.21 in, Width 3.82 in, 4.17 in, Depth 5.59 in, Switching Ability Dual Cable, DC Contact Rating 0.27A @ 250V DC, Case Material Stainless steel, Wiring Entry Three 1/2 in NPT Conduit Openings, IP Rating 66

Web Price

$741.24 / each

Qty

Product Details

AC Contact Rating 3A @ 240V AC

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bellow Material nitril

Body Material zamak

Cable Connection Location Left and Right

Cable Entry Number 3 tapped entry 1/2 NPT conduit entry

Case Material Stainless steel

Compatibility Code XY2CED

Connections - Terminals screw clamp terminal, 1 x 0.5 to 2 x 1.5 mmÃÂ²

Contact Form 2 x (1 NC/1 NO)

Contact Operation slow-break

Contacts Type And Composition 2 x (1 NC + 1 NO)

Country of Origin (subject to change) Morocco

Cover Material stainless steel

DC Contact Rating 0.27A @ 250V DC

Depth 5.59 in

Device Short Name XY2CED

Distance Between Cable Supports 3-5 m

Housing Colour red RAL 3000

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Length 12.89 in, 13.21 in

Length (Straight Wireway) 12.89 in, 13.21 in

Local Signalling with pilot light, red, 24 to 130 V

Marking CE

Maximum Resistance Across Terminals 25 MOhm EN/IEC 60255-7 category 3

Mechanical Durability 60000 cycles

Number Of Cables 2

Overvoltage Category class I EN/IEC 61140

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1

Product Certifications UL category NISD emergency stop devices || CSA || CCC || EAC

Product Or Component Type dual emergency stop rope pull switch

Protective Treatment TC

Reset Flush Push Button

Safety Level can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 50 gn 11 ms EN/IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60269

Standards EN/ISO 13850, EN/IEC 60947-5-1, CSA C22.2 No 14, Machinery directive 2006/42/EC, EN/IEC 60204-1, UL 508, Work equipment directive 2009/104/EC, EN/IEC 60947-5-5

Switching Ability Dual Cable

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Thermal Amperage 10 A

Tightening Torque 0.8-1.2 N.m

Trigger Cable Anchor Point RH and LH sides

Trigger Cable Maximum Length 2 x 100 m

Vibration Resistance 10 gn 10-300 Hz)EN/IEC 60068-2-6

Width 3.82 in, 4.17 in

Wiring Entry Three 1/2 in NPT Conduit Openings

[Ie] Rated Operational Current 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1
