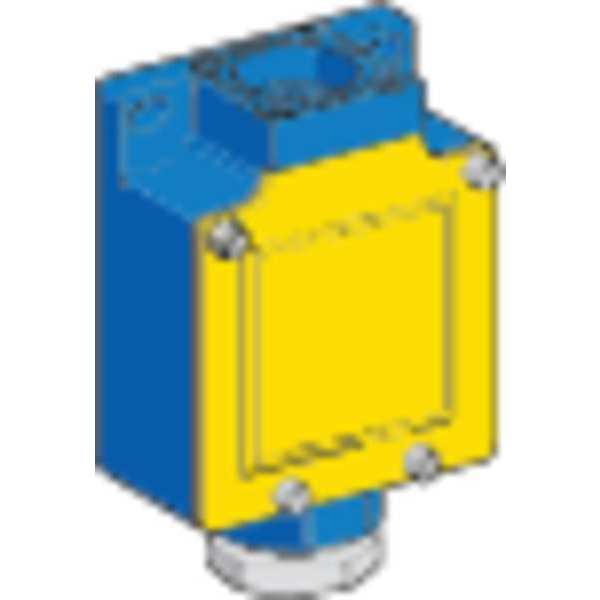

Limit Sw Body Snap Double Brk 1No/Nc 1P

SKU
Brand Telemecanique Sensors
Categories
Description Limit Sw Body Snap Double Brk 1No/Nc 1P, Contact Form 1NO/1NC, AC Contact Rating 3 A @ 240V AC, Electrical Connection Screw Clamp Terminals, IP Rating 66, Operating Temp. -13 Degrees to 158 Degrees F, Standards RoHS Compliant
graingerSKU: 48L351, mscSKU: 69656098, zoro_no: G0654249, mongo_id: 65bbe98f22d7a989a9962b6a

Web Price

$141.24 / each

Qty

Product Details

AC Contact Rating 3 A @ 240V AC

Ambient Air Temperature For Operation -25-70ÃÂ°C standard environment

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Head ZCKD029 || ZCKD02 || ZCKD239 || ZCKD21 || ZCKD41 || ZCKD23 || ZCKD10 || ZCKD219 || ZCKD17 || ZCKD16 || ZCKD08 || ZCKD81 || ZCKD109 || ZCKD06 || ZCKD91 || ZCKD59 || ZCKD15 || ZCKD05

Body Material metal

Body Type fixed

Cable Entry 1 tapped entry for Pg 13.5 cable gland (included)

Contact Form 1NO/1NC

Contact Operation snap action

Contacts Material silver plated contacts

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) France

Depth 30 mm

Device Short Name ZCKL

Electrical Connection Screw Clamp Terminals

Electrical Durability 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

Environmental Characteristic standard environment

Height 72-72 mm

Ik Degree Of Protection IK05

Ip Degree Of Protection IP66

IP Rating 66

Maximum Resistance Across Terminals 0.25 mOhm IEC 60255-7 category 3

Minimum Actuation Speed 0.01 m/min

Number Of Poles 2

Number Of Steps 1 1 position

Operating Temp. -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with
