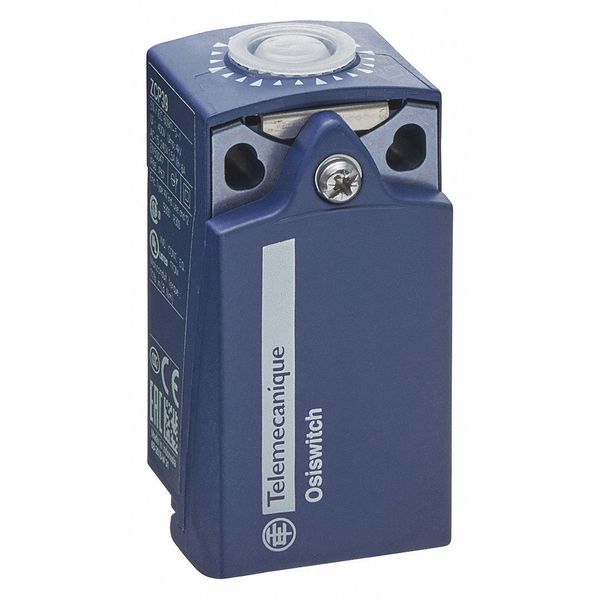

Limit Switch 240Vac 5A Plast Zcp

SKU
Brand Telemecanique Sensors
Categories
Description Limit Switch 240Vac 5A Plast Zcp
graingerSKU: 48L452, mscSKU: , zoro_no: G0561115, mongo_id: 65bbe58a3aaddbd5a9fccc2e

Web Price

$59.36 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Connection Component ZCPEP20 || ZCPEG11 || ZCPEP16 || ZCPEG13 || ZCPEN12 || ZCPEF12

Associated Head ZCE07 || ZCE08 || ZCE27 || ZCE63 || ZCEH2 || ZCE28 || ZCE11 || ZCE24 || ZCE13 || ZCE02 || ZCE10 || ZCE66 || ZCE05 || ZCE65 || ZCE29 || ZCE14 || ZCE62 || ZCE09 || ZCEH0 || ZCE21 || ZCE67 || ZCE06 || ZCE01 || ZCE64

Body Material plastic

Body Type fixed

Contact Code Designation R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A || C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A

Contact Operation snap action

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 2 NC + 1 NO

Country of Origin (subject to change) France

Depth 30 mm

Design compact

Device Short Name ZCP

Electrical Connection screw-clamp terminals 1 x 0.34 to 2 x 0.75 mmÃÂ²

Electrical Durability 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

Height 65-65 mm

Minimum Actuation Speed 0.01 m/s

Number Of Poles 3

Package Quantity 1

Positive Opening with

Product Compatibility XCKP

Product Or Component Type limit switch body

Promotion Restriction Not eligible for promotion

Series Name Standard compact

Short-Circuit Protection 6 A cartridge fuse gG

Width 31 mm

[Uimp] Rated Impulse Withstand Voltage 4 kV IEC 60664 || 4 kV IEC 60947-1
