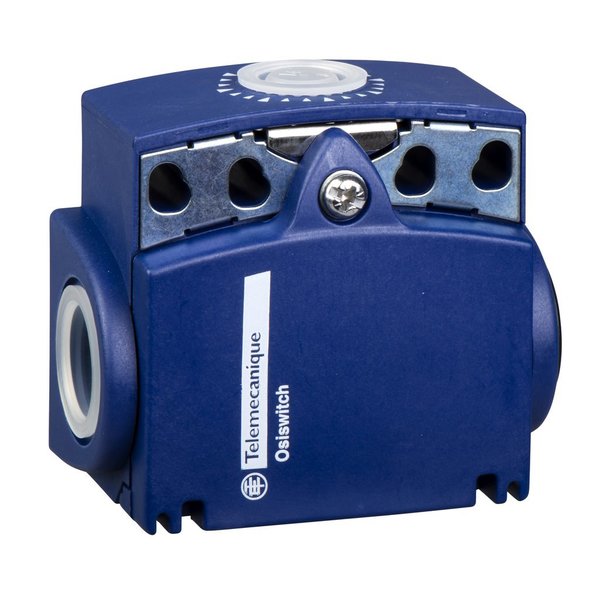

Limit switch body ZCT-compact-1NC1N

SKU
Brand Telemecanique Sensors
Categories
Description Limit switch body ZCT - compact - 1NC+1N

Web Price

$73.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Associated Head ZCE05 || ZCE02 || ZCE29 || ZCE13 || ZCE63 || ZCEH2 || ZCE01 || ZCE62 || ZCEH0 || ZCE66 || ZCE21 || ZCE07 || ZCE08 || ZCE24 || ZCE09 || ZCE67 || ZCE06 || ZCE10 || ZCE14 || ZCE27 || ZCE11 || ZCE65 || ZCE28 || ZCE64

Body Material plastic

Body Type fixed

Cable Entry 2 entries tapped for M16 x 1.5 cable gland 4-8 mm

Contact Code Designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A

Contact Operation snap action

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) France

Depth 30 mm

Design compact

Device Short Name ZCT

Electrical Connection screw-clamp terminals 1 x 0.34 to 2 x 1.5 mmÃÂ²

Electrical Durability 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

Height 51-51 mm

Minimum Actuation Speed 0.01 m/s

Number Of Poles 2

Package Quantity 1

Positive Opening with

Product Compatibility XCKT

Product Or Component Type limit switch body

Promotion Restriction Not eligible for promotion

Series Name Standard compact

Short-Circuit Protection 10 A cartridge fuse gG

Width 58 mm

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60664 || 6 kV IEC 60947-1
