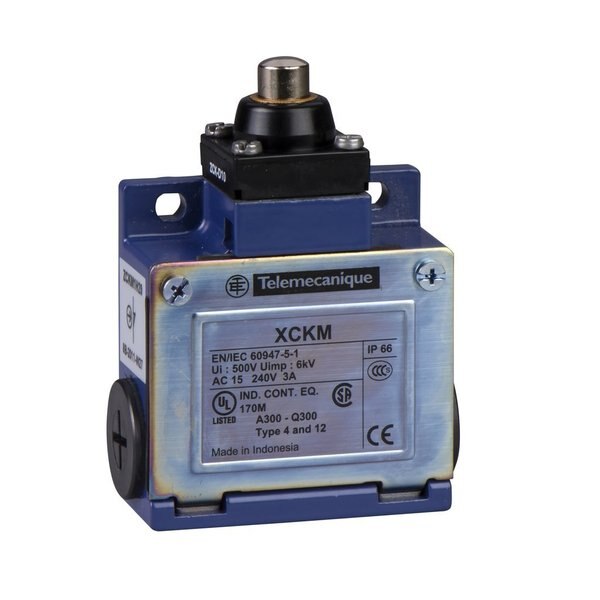

Limit Switch, Plunger, Spring Return, 1NC/1NO, Actuator Location: Top

SKU
Brand Telemecanique Sensors
Categories
Description Limit switch XCKM - metal end plunger -

Web Price

$94.99 / each

Qty

Product Details

Actuation Type on end

Actuator Location - Limit Switch Top

Actuator Style - Limit Switch Plunger, Spring Return

Basic Actuator Style - Limit Switch Plunger

Body Depth - Limit Switch 30 mm

Body Height - Limit Switch 64mm

Body Material zamak

Body Style (Limit Switch) fixed

Certification UL || CSA || CCC

Contact Action snap action

Contact Form- Switches 1NC/1NO

Country of Origin (subject to change) France

Electrical Connection screw-clamp terminals 1 x 0.34...2 x 1.5 mmÃÂ²

Electrical Durability 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

Head Type plunger head

IP Rating IP66 conforming to EN/IEC 60529

Mechanical Durability 20000000 cycles

Min. Actuation Velocity Horizontal 0.5 m/s

Movement linear

Number Of Poles 2

Operating Force 15 N

Operating Temp. Range -25-70 ÃÂ°C

Package Quantity 1

Promotion Restriction Not eligible for promotion

Series XCKM

Shock Resistance 50 gn 11 ms EN/IEC 60068-2-27
