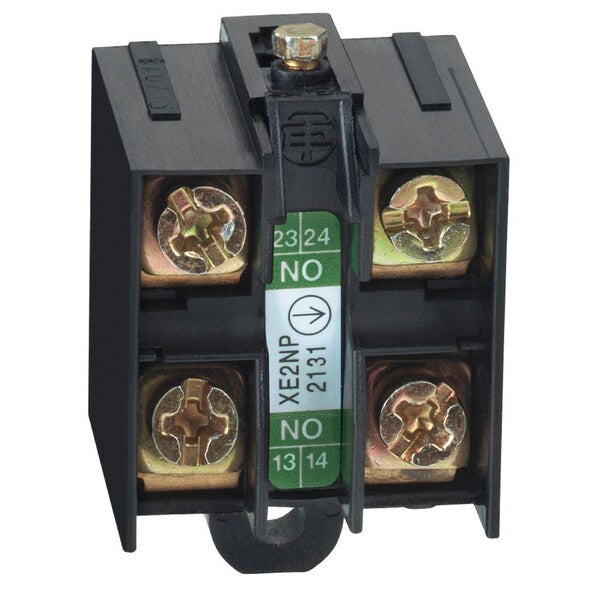

Lmt Switch 2 Contact Block 240Vac 3A Xe2

SKU
Brand Telemecanique Sensors
Categories
Description Lmt Switch 2 Contact Block 240Vac 3A Xe2

Web Price

$71.69 / each

Qty

Product Details

Associated Body ZCKS8 || ZCKJ8D || ZCKM8 || ZCP28 || ZCKL8 || ZCKJ8 || ZCD28

Contact Code Designation A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A

Contact Operation slow-break, simultaneous

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 2 NO

Country of Origin (subject to change) Multiple

Device Short Name XE2N

Electrical Connection screw-clamp terminals 1 x 0.5 to 2 x 2.5 mmÃÂ²

Electrical Durability 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3

Minimum Actuation Speed 6 m/min

Number Of Poles 2

Package Quantity 1

Positive Opening without

Product Compatibility XCKD || XCKS || XCKP || XCKM || XCKL || XCKJ

Product Or Component Type limit switch contact block

Series Name standard format

Short-Circuit Protection 10 A cartridge fuse gG

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60664 || 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
