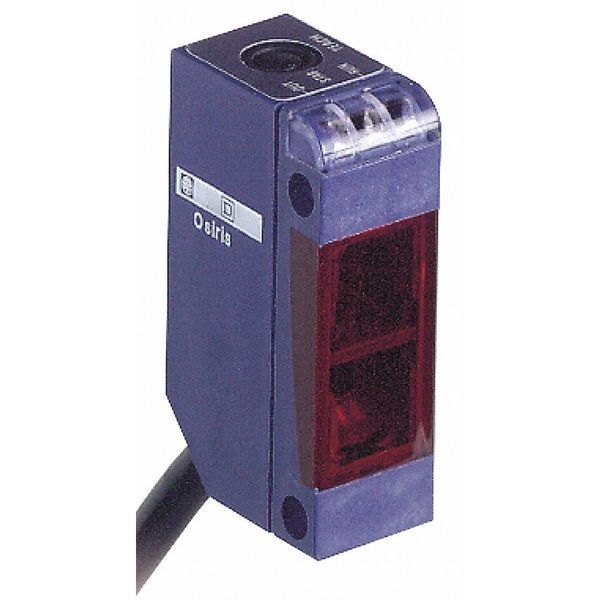

Miniature Rectangular Pnp Dc Only 2M Cab

SKU
Brand Telemecanique Sensors
Categories
Description Miniature Rectangular Pnp Dc Only 2M Cab
graingerSKU: , mscSKU: , zoro_no: G0653880, mongo_id: 65bbe73d9a749db822727aef

Web Price

$174.99 / each

Qty

Product Details

Add On Output with alarm output, 50 mA

Ambient Air Temperature For Operation -25-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Length 2 m

Country of Origin (subject to change) Indonesia

Current Consumption 35 mA no-load

Depth 20 mm

Detection System multimode

Discrete Output Function 1 NO or 1 NC programmable

Discrete Output Type PNP

Electrical Connection cable

Electronic Sensor Type photo-electric sensor

Emission infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex

Enclosure Material PBT

Height 34 mm

Ip Degree Of Protection IP65 double insulation IEC 60529 || IP67 double insulation IEC 60529

Lens Material PMMA

Material plastic

Maximum Delay First Up 100 ms

Maximum Delay Recovery 2 ms

Maximum Delay Response 2 ms

Maximum Sensing Distance 14 m thru beam || 4 m polarised reflex || 0.1 m diffuse with background suppression || 0.55 m diffuse

Maximum Voltage Drop <1.5 V closed state)

Output Type solid state

Package Quantity 1

Product Certifications UL || CE || CSA

Promotion Restriction Not eligible for promotion

Sensor Design miniature

Sensor Name XUM

Series Name general purpose multimode

Setting-Up self-teaching

Shock Resistance 30 gn 11 ms) IEC 60068-2-27

Status Led 1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state

Supply Circuit Type DC

Switching Capacity In Ma <= 100 mA overload and short-circuit protection)

Switching Frequency <= 250 Hz

Type Of Output Signal discrete

Vibration Resistance 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6

Width 12 mm

Wire Insulation Material PvR

Wiring Technique 3-wire

[Sn] Nominal Sensing Distance 3-3 m polarised reflex need reflector XUZC50 || 10-10 m thru beam need a transmitter XUM0AKSAL2T || 0.1-0.1 m diffuse with background suppression || 0.4-0.4 m diffuse

[Us] Rated Supply Voltage 12...24 V DC reverse polarity protection
