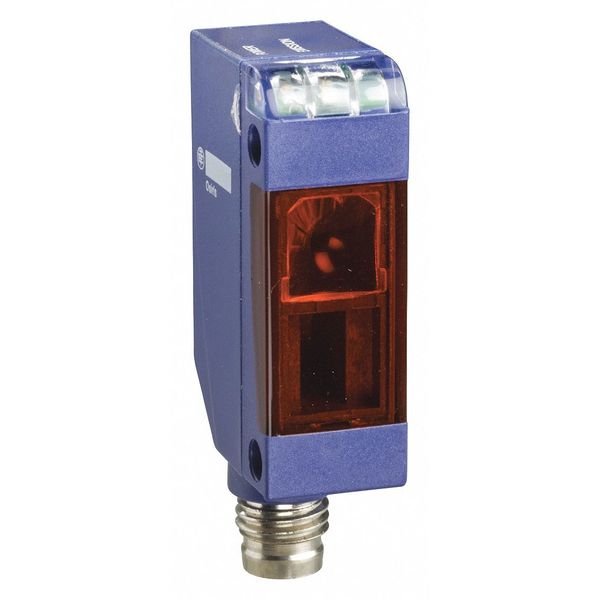

Miniature Rectangular Xum Pnp Dc M8 Conn

SKU
Brand Telemecanique Sensors
Categories
Description Miniature Rectangular Xum Pnp Dc M8 Conn
graingerSKU: 48T338, mscSKU: 69535078, zoro_no: G0653899, mongo_id: 65bbe74d3aaddbd5a90874ab

Web Price

$162.49 / each

Qty

Product Details

Add On Output with alarm output, 50 mA

Ambient Air Temperature For Operation -25-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Country of Origin (subject to change) Indonesia

Current Consumption 35 mA no-load

Depth 20 mm

Detection System multimode

Discrete Output Function 1 NO or 1 NC programmable

Discrete Output Type PNP

Electrical Connection 1 male connector M8, 4 pins

Electronic Sensor Type photo-electric sensor

Emission infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex

Enclosure Material PBT

Height 45 mm

Ip Degree Of Protection IP65 IEC 60529 || IP67 IEC 60529

Lens Material PMMA

Material plastic

Maximum Delay First Up 100 ms

Maximum Delay Recovery 2 ms

Maximum Delay Response 2 ms

Maximum Sensing Distance 14 m thru beam || 4 m polarised reflex || 0.1 m diffuse with background suppression || 0.55 m diffuse

Maximum Voltage Drop <1.5 V closed state)

Output Type solid state

Package Quantity 1

Product Certifications CSA || UL || CE

Promotion Restriction Not eligible for promotion

Sensor Design miniature

Sensor Name XUM

Series Name general purpose multimode

Setting-Up self-teaching

Shock Resistance 30 gn 11 ms) IEC 60068-2-27

Status Led 1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state

Supply Circuit Type DC

Switching Capacity In Ma <= 100 mA overload and short-circuit protection)

Switching Frequency <= 250 Hz || 240 Hz

Type Of Output Signal discrete

Vibration Resistance 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6

Width 12 mm

Wire Insulation Material PVC

Wiring Technique 3-wire

[Sn] Nominal Sensing Distance 3-3 m polarised reflex need reflector XUZC50 || 10-10 m thru beam need a transmitter XUM0AKSAM8T || 0.1-0.1 m diffuse with background suppression || 0.4-0.4 m diffuse

[Us] Rated Supply Voltage 12...24 V DC reverse polarity protection
