Home / Replacement Contact Block, 1NO/1NC

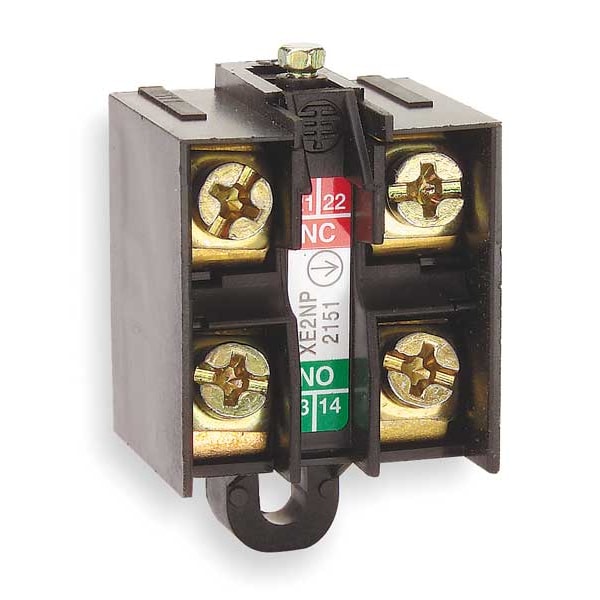

Replacement Contact Block, 1NO/1NC

SKU
Brand Telemecanique Sensors
Categories
Description Contact Block, Contact Form 1NO/1NC, For Use With XCKD, XCKJ, XCKL , XCKM, XCKP, XCKS, XCR Limit Switches, AC Contact Rating 10A @ 600V AC, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection Screw Terminal, IP Rating Not Rated, Operating Temp. -77 Degrees to 158 Degrees F, Standards CSA, EN/IEC, UL
graingerSKU: 4AJ35, mscSKU: , zoro_no: G1157554, mongo_id: 65bbe85f22d7a989a98f006d

Web Price

$55.74 / each

Qty

Product Details

AC Contact Rating 10A @ 600V AC

Associated Body ZCKM5 || ZCKL5 || ZCP25 || ZCKJ5 || ZCD25 || ZCKS5 || ZCKJ5D

Contact Code Designation A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A

Contact Form 1NO/1NC

Contact Operation slow-break, break before make

Contacts Insulation Form Zb

Contacts Material silver plated contacts

Contacts Type And Composition 1 NO + 1 NC

Country of Origin (subject to change) Multiple

Device Short Name XE2N

Electrical Connection Screw Terminal

Electrical Durability 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

For Use With XCKD, XCKJ, XCKL , XCKM, XCKP, XCKS, XCR Limit Switches

IP Rating Not Rated

Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3

Minimum Actuation Speed 6 m/min

NEMA Rating 1, 12, 2, 3, 4

Number Of Poles 2

Operating Temp. -77 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with

Product Compatibility XCKD || XCKS || XCR || XCKJ || XCKL || XCKM || XCKP

Product Or Component Type limit switch contact block

Series Name standard format
