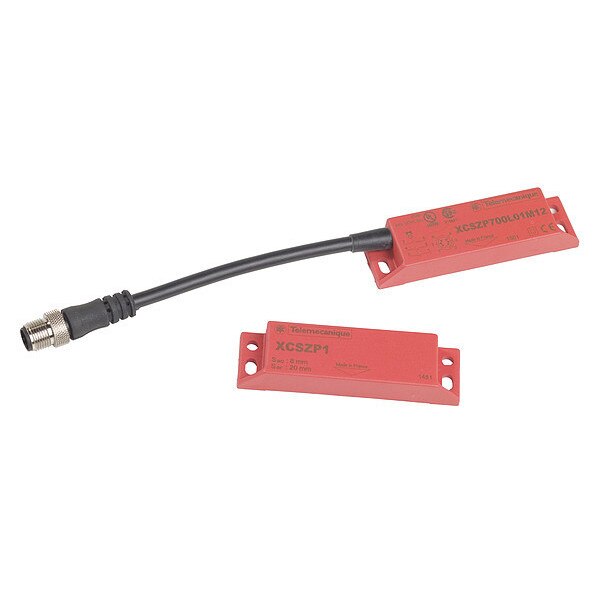

Safety Inter Mag Rect With M12 Conn

SKU
Brand Telemecanique Sensors
Categories
Description Safety Inter Mag Rect With M12 Conn
graingerSKU: 48L126, mscSKU: 69533172, zoro_no: G0835987, mongo_id: 65bbe80e22d7a989a98d343b

Web Price

$228.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-85ÃÂ°C

Ambient Air Temperature For Storage -40-85ÃÂ°C

Approach Directions 3 directions

Breaking Capacity 10 VA

Cable Length 0.15 m

Cable Material PVC

Component Name XCSDMP

Connector Type M12

Contact Operation 1 NC staggered

Contacts Material rhodium

Contacts Type And Composition 2 NC + 1 NO

Country of Origin (subject to change) France

Depth 13 mm

Design rectangular, standard

Electrical Connection connector on flying lead

Electrical Durability 1200000 cycles

Electrical Shock Protection Class class II EN/IEC 61140

Enclosure Material thermoplastic PBT

Height 88 mm

Insulation Resistance 1000 MOhm

Ip Degree Of Protection IP67 conforming to IEC 60529

Material plastic

Maximum Sensitivity To Magnetic Fields 0.3 mT

Maximum Switching Voltage 100 V DC

Maximum [Ie] Rated Operational Current 100 mA

Number Of Poles 3

Package Quantity 1

Product Certifications CSA || UL

Product Or Component Type coded magnetic switch

Promotion Restriction Not eligible for promotion

Protective Treatment TH

Resistance Across Terminals 10 Ohm

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 30 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 500 mA external cartridge fuse gG (gl)

Size 88 x 25 x 13 mm

Standards EN/IEC 60204-1 || CSA C22.2 No 14 || EN/ISO 12100 || EN/IEC 60947-5-1 || UL 508 || ISO 14119

Switching Capacity In Ma 0.1...100 mA

Switching Frequency 150 Hz

Vibration Resistance 10 gn 10-150 Hz)IEC 60068-2-6

Width 25 mm

[Sar] Assured Tripping Distance 20 mm

[Sa] Assured Operating Distance 8 mm

[Ue] Rated Operational Voltage 24 V DC

[Uimp] Rated Impulse Withstand Voltage 2.5 kV EN/IEC 60947-5-1
