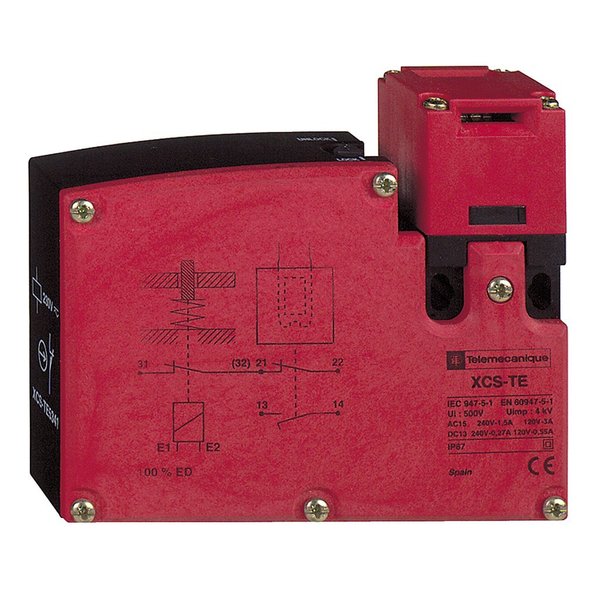

Safety Interlock 240Vac 5A Txcs

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock 240Vac 5A Txcs
graingerSKU: 48L174, mscSKU: , zoro_no: G0835339, mongo_id: 65bbee2c526e052139af4ffe

Web Price

$429.99 / each

Qty

Product Details

Actuator Forcible Withdrawal Rtc 500 N

Ambient Air Temperature For Operation -25-60ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material PA (polyamide)

Cable Entry 1 entry tapped Pg 11

Cable Outer Diameter 7-10 mm

Component Name XCSTE

Contact Operation slow-break, break before make

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) France

Depth 33 mm

Design rectangular

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class II EN/IEC 61140

Electromagnet Interlocking locking on de-energisation and unlocking on energisation of solenoid

Head Material PA (polyamide)

Head Type key operated turret head

Height 94-94 mm

Insulation double insulated

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Load Factor 1

Material plastic

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 1000000 cycles

Minimum Actuation Speed 0.01 m/s

Number Of Poles 2

Package Quantity 1

Positive Opening with NC contact

Positive Opening Minimum Force 15 N

Power Consumption In Va 10 VA

Product Certifications CSA || UL

Product Or Component Type safety switch

Promotion Restriction Not eligible for promotion

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Solenoid Contacts Type And Composition 1 NC slow-break)

Standards EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN 1088/ISO 14119 || EN/ISO 12100

Supply Frequency 50/60 Hz

Supply Voltage Type AC/DC

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 110 mm

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 6A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14

[Us] Rated Supply Voltage 24 V - 20...10 %
