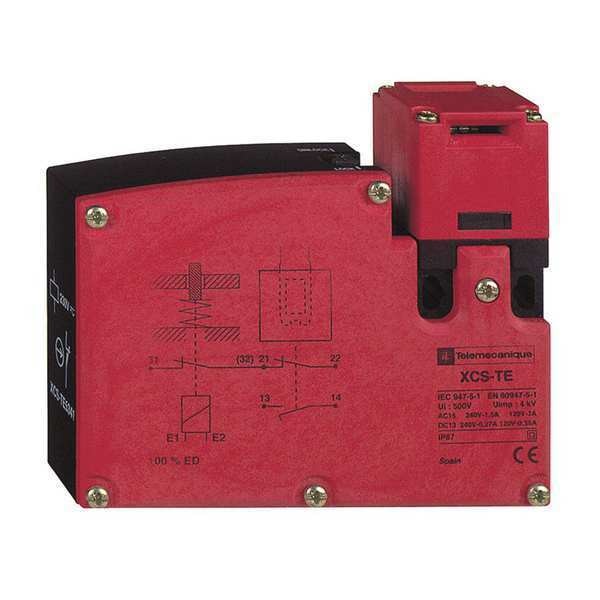

Safety Interlock 240Vac 5A Txcs

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock 240Vac 5A Txcs, Actuating Key, Contact Form 2NC, Actuator Length Key Dependent, Connection Type M11, AC Contact Rating 3A @ 120V, DC Contact Rating 0.55A @ 125V, Solenoid Voltage 24 VAC/DC, Height 3.7 in, Width 4.7 in, Depth 1.29 in, IP Rating 67, Operating Temp. Range -13 Degrees to 140 Degrees F, Body Material Polyamide, Head Material Polyamide, Standards UL, CSA
graingerSKU: null, mscSKU: null, zoro_no: G0560467, mongo_id: 65bbe67b3aaddbd5a903158d

Web Price

$448.74 / each

Qty

Product Details

AC Contact Rating 3A @ 120V

Actuator Forcible Withdrawal Rtc 500 N

Actuator Length Key Dependent

Ambient Air Temperature For Operation -25-60ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material Polyamide

Cable Entry 1 entry tapped Pg 11

Cable Outer Diameter 7-10 mm

Component Name XCSTE

Connection Type M11

Contact Form 2NC

Contact Operation slow-break, simultaneous

Contacts Type And Composition 2 NC

Country of Origin (subject to change) France

DC Contact Rating 0.55A @ 125V

Depth 1.29 in

Design rectangular

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class II EN/IEC 61140

Electromagnet Interlocking locking on de-energisation and unlocking on energisation of solenoid

Head Material Polyamide

Head Type key operated turret head

Height 3.7 in

Insulation double insulated

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

IP Rating 67

Load Factor 1

Material plastic

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 1000000 cycles

Minimum Actuation Speed 0.01 m/s

Number Of Poles 2

Operating Temp. Range -13 Degrees to 140 Degrees F

Package Quantity 1

Positive Opening with NC contact

Positive Opening Minimum Force 15 N

Power Consumption In Va 10 VA

Product Certifications UL || CSA

Product Or Component Type safety switch

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Solenoid Contacts Type And Composition 1 NC slow-break)

Solenoid Voltage 24 VAC/DC

Standards UL, CSA

Style Actuating Key

Supply Frequency 50/60 Hz

Supply Voltage Type AC/DC

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 4.7 in

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 6A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14

[Us] Rated Supply Voltage 24 V - 20...10 %
