Home / Safety Interlock 300Vac 5A Txcs

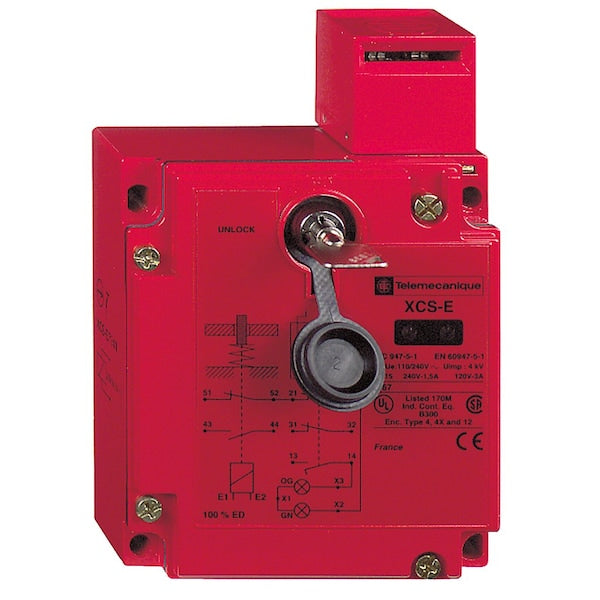

Safety Interlock 300Vac 5A Txcs

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock 300Vac 5A Txcs
graingerSKU: 48L165, mscSKU: , zoro_no: G0560406, mongo_id: 65bbe8669a749db82278c192

Web Price

$918.74 / each

Qty

Product Details

Actuator Forcible Withdrawal Rtc 2000 N

Ambient Air Temperature For Operation -25-40ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material zamak

Cable Entry 2 entries tapped Pg 13.5

Cable Outer Diameter 9-12 mm

Component Name XCSE

Contact Operation slow-break, break before make

Contacts Type And Composition 1 NC + 2 NO

Country of Origin (subject to change) Multiple

Depth 44 mm

Design rectangular

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class I EN/IEC 61140

Electromagnet Interlocking locking on de-energisation and unlocking on energisation of solenoid

Head Material zamak

Head Type key operated turret head

Height 146-146 mm

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Load Factor 1

Local Signalling for guard open/guard closed and locked 2 LEDs (green or orange)

Material metal

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 1000000 cycles

Minimum Actuation Speed 0.01 m/s

Minimum Actuator Force For Extraction 20 N

Number Of Poles 3

Package Quantity 1

Positive Opening with NC contact

Power Consumption In Va 10 VA inrush || 10 VA sealed

Product Certifications UL || CSA

Product Or Component Type safety switch

Promotion Restriction Not eligible for promotion

Protection Type overvoltage protection signalling circuit

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Signalling Circuit Consumption 7 mA

Signalling Circuit Type AC/DC

Signalling Circuit Voltage 24/48 V 20...52 V)

Solenoid Contacts Type And Composition 1 NC + 1 NO slow-break, simultaneous)

Standards EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/ISO 12100 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14

Supply Frequency 50/60 Hz

Supply Voltage Type AC/DC

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 98 mm

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 6A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 50 VEN/IEC 60947-1 signalling circuit

[Us] Rated Supply Voltage 24 V - 20...10 %
