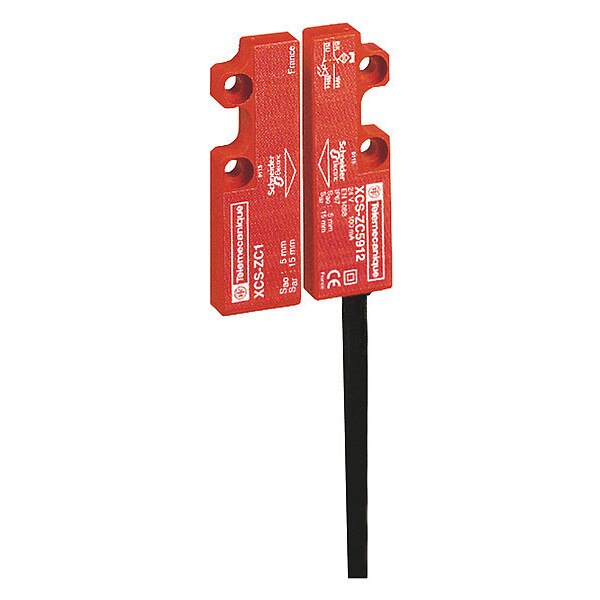

Safety Interlock Type Xcs + Options

SKU
Brand Telemecanique Sensors
Categories
Description Safety Interlock Type Xcs + Options
graingerSKU: 48L124, mscSKU: 49813629, zoro_no: G0560211, mongo_id: 65bbe7e49a749db82276101c

Web Price

$177.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-85ÃÂ°C

Ambient Air Temperature For Storage -40-85ÃÂ°C

Approach Directions 3 directions

Breaking Capacity 10 VA

Cable Composition 4 x 0.25 mmÃÂ²

Cable Length 5 m

Cable Material PVC

Component Name XCSDMC

Contact Operation staggered

Contacts Material rhodium

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) France

Depth 7 mm

Design rectangular, compact

Electrical Connection pre-cabled

Electrical Durability 1200000 cycles

Electrical Shock Protection Class class II EN/IEC 61140

Enclosure Material thermoplastic PBT

Height 51 mm

Insulation Resistance 1000 MOhm

Ip Degree Of Protection IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529

Material plastic

Maximum Sensitivity To Magnetic Fields 0.3 mT

Maximum Switching Voltage 100 V DC

Maximum [Ie] Rated Operational Current 100 mA

Number Of Poles 2

Package Quantity 1

Product Certifications UL || CSA

Product Or Component Type coded magnetic switch

Promotion Restriction Not eligible for promotion

Protective Treatment TH

Resistance Across Terminals 10 Ohm

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 30 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 500 mA external cartridge fuse gG (gl)

Size 51 x 16 x 7 mm

Standards ISO 14119 || EN/ISO 12100 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-1 || UL 508

Switching Capacity In Ma 0.1...100 mA

Switching Frequency 150 Hz

Vibration Resistance 10 gn 10-150 Hz)IEC 60068-2-6

Width 16 mm

[Sar] Assured Tripping Distance 15 mm

[Sa] Assured Operating Distance 5 mm

[Ue] Rated Operational Voltage 24 V DC

[Uimp] Rated Impulse Withstand Voltage 2.5 kV EN/IEC 60947-5-1
