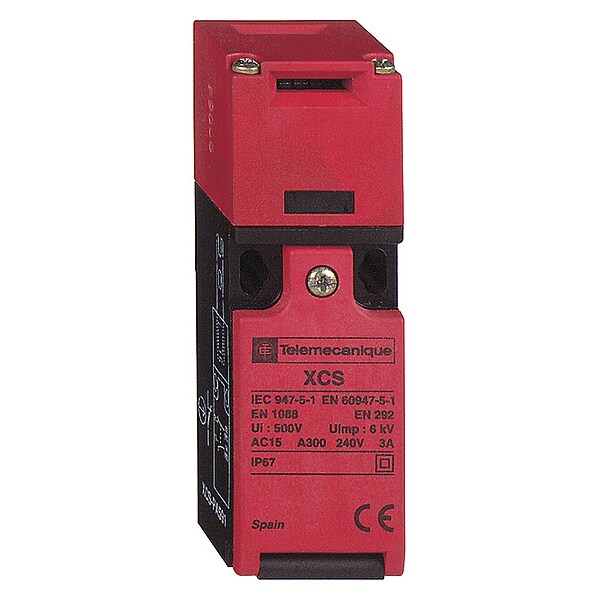

Sftyinterlck240Vac10Atypexcs Metricver

SKU
Brand Telemecanique Sensors
Categories
Description Safty Interlock Switch, 40Vac, 10A, Type XCS
graingerSKU: 48L119, mscSKU: 69657427, zoro_no: G0560205, mongo_id: 65bbe6bf3aaddbd5a904df7e

Web Price

$110.19 / each

Qty

Product Details

Actuator Forcible Withdrawal Rtc 10 N

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material PA (polyamide)

Cable Entry 1 entry tapped Pg 11

Cable Outer Diameter 7-10 mm

Component Name XCSPA

Contact Operation slow-break, break before make

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Multiple

Depth 30 mm

Design compact

Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÃÂ² with or without cable end

Electrical Shock Protection Class class II EN/IEC 61140

Head Material PA (polyamide)

Head Type key operated turret head

Height 94-94 mm

Insulation double insulated

Ip Degree Of Protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Material plastic

Maximum Actuation Speed 0.5 m/s

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 1000000 cycles

Minimum Actuation Speed 0.01 m/s

Number Of Poles 2

Package Quantity 1

Positive Opening with NC contact

Positive Opening Minimum Force 15 N

Product Certifications UL || CSA

Product Or Component Type safety switch

Protective Treatment TC

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG (gl)

Standards EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/ISO 12100 || EN/IEC 60204-1 || EN 1088/ISO 14119 || UL 508

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1

[Ithe] Conventional Enclosed Thermal Current 10A

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
