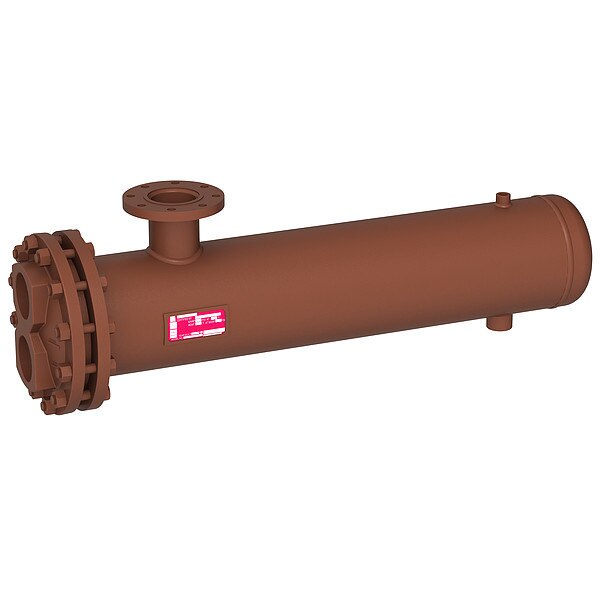

Steam-Water Heat Exchanger, 1,414,000BtuH

Steam-Water Heat Exchanger, 1,414,000BtuH

  • Thrush
  • Steam to Water Heat Exchanger, Heat Dissipation Capacity for Water 1,414,000 BtuH, Heat Dissipation Capacity for Oil Not Applicable, Total Surface Area 56.5 sq ft, Shell Outside Diameter 10 in, Tube Length 56 3/8 in, Shell Material Carbon Steel, Tube Material Copper, Number of Passes 2, Shell Maximum Pressure Rating 150 psig, Shell Maximum Operating Temperature 375 Degrees F, Tube Maximum Pressure Rating 125 psig, Tube Maximum Operating Temperature 400 Degrees F, Fluid Compatibility Steam, Water

    graingerSKU: null, mscSKU: null, zoro_no: G600488250, mongo_id: 65bbe5e23aaddbd5a9ff2e9f

Web Price
$11,791.24 / each
Qty

Product Details

ASME Section VIII div. 1, National Board Registered
Air Conditioning, Heat Recovery, Liquid Heating and Cooling, Heating Systems
365 gpm
Condensate 1.5 in NPT, Steam 4 in FLG, Tube 4 in NPT, Vent 3/4 in NPT
¾ in 20ga Copper Tubes, Carbon Steel Baffle, Carbon Steel Shell, Carbon Steel Tubesheet, Cast Iron Head
United States
16 in
Not Applicable
1,414,000 BtuH
U-Tube
16 in
56.375 in
1,414,000 BtuH
2
16 in
16 in
1
Shell 150 PSI, Tube 125 PSI
265 gpm
Carbon Steel
375 Degrees F
150 psig
10 in
4 in
Flange
ASME Section VIII Div. 1
Max 375 Degrees F
56.5 sq ft
145 gpm
56 3/8 in
Copper
400 Degrees F
125 psig
4 in
Shell and Tube
380 lb
16 in
